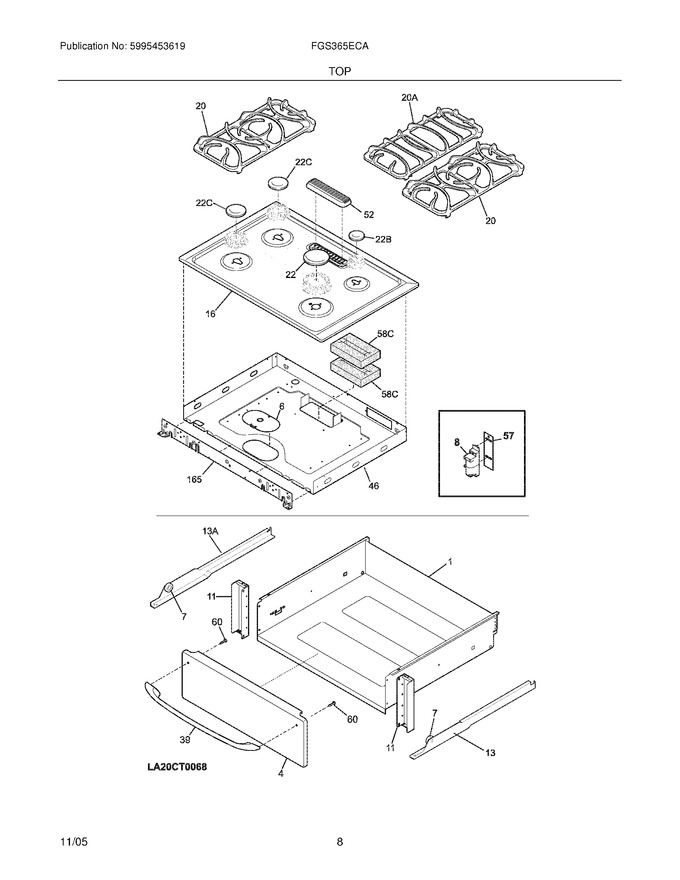

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298800		Panel,drawer ,stainless ,front		Appelez-nous	-
6	318229900		Cover,wiring		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318295406		Maintop,black		Appelez-nous	-
20	318231304		Grate,black ,(2)				$ 319.67
22	316242806		Cap,11k Burner ,black		Appelez-nous	-
39	318231200		Handle,black		Appelez-nous	-
46	318225411		Box,burner		Appelez-nous	-
52	318291202		Cover,flue ,black ,outer		Appelez-nous	-
57	318295610		Panel,service		Appelez-nous	-
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
165	318227504		Plate,mounting		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
20A	318307504		Grate,center ,black		Appelez-nous	-
22B	316206505		Cap,5k Burner ,black		Appelez-nous	-
22C	316242906		Cap,9.5k Burner ,black		Appelez-nous	-
58C	318285088		Insulation,flue ,(3)		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	5303325173		Cap-plug		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
