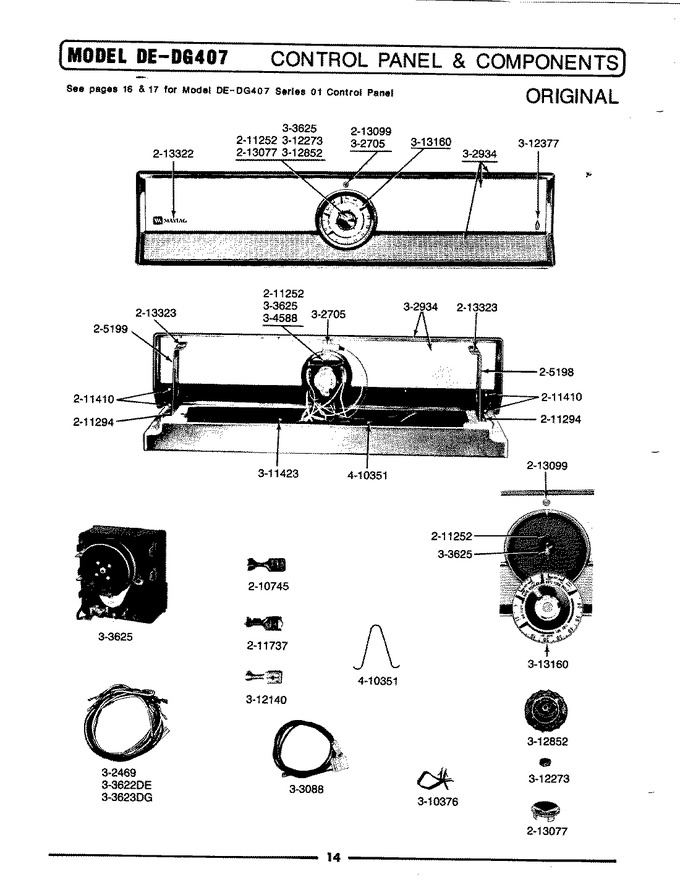

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 205198 | Bracket Kit - Left Hand | 00 |
|
- | ||||
| 2 | 205199 | Bracket Kit - Right Hand | 00 |
|
- | ||||
| 3 | 210745 | Wire Terminal | 00 |
|
- | ||||
| 4 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 5 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 6 | 211410 | Screw, Hex Hd No.8 X 3/8 Inch | 00 |
|
$ 6.64 | ||||
| 7 | WP248562 | Wire Connector (Replaces: 211737) | 00 |
|
$ 6.95 | ||||
| 8 | 213077 | Cap For Timer Knob | 00 |
|
- | ||||
| 9 | 213099 | Lens For Control Panel | 00 |
|
- | ||||
| 10 | 213322 | Maytag Decal | 00 |
|
- | ||||
| 11 | 213323 | Fastener, Exhaust Duct Kit | 00 |
|
- | ||||
| 12 | 302469 | Harness For Shroud | 00 |
|
- | ||||
| 13 | Y302705 | Light | 00 |
|
- | ||||
| 14 | 302934 | Control Panel With Lens | 00 |
|
- | ||||
| 15 | 303088 | Gas Valve Wires With Plug | 00 |
|
- | ||||
| 16 | Y303622 | Main Wire Harness | 00 |
|
- | ||||
| 17 | 303623 | Main Wire Harness | 00 |
|
- | ||||
| 18 | 303625 | Push-to-start Timer | 00 |
|
- | ||||
| 19 | 304588 | Timer Motor | 00 |
|
- | ||||
| 20 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 21 | WP489483 | Screw, No.10-32 X 1/2 Inch (Replaces: Y311423) | 00 |
|
$ 9.78 | ||||
| 22 | Y312140 | Wire Connector | 00 |
|
- | ||||
| 23 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 24 | 312852 | Selector Knob-clear Acrylic | 00 |
|
$ 23.60 | ||||
| 25 | 312377 | Symbol - Gas | 00 |
|
- | ||||
| 26 | Y313160 | Timer Dial | 00 |
|
- | ||||
| 27 | 410351 | Harness Retainer | 00 |
|
- |
