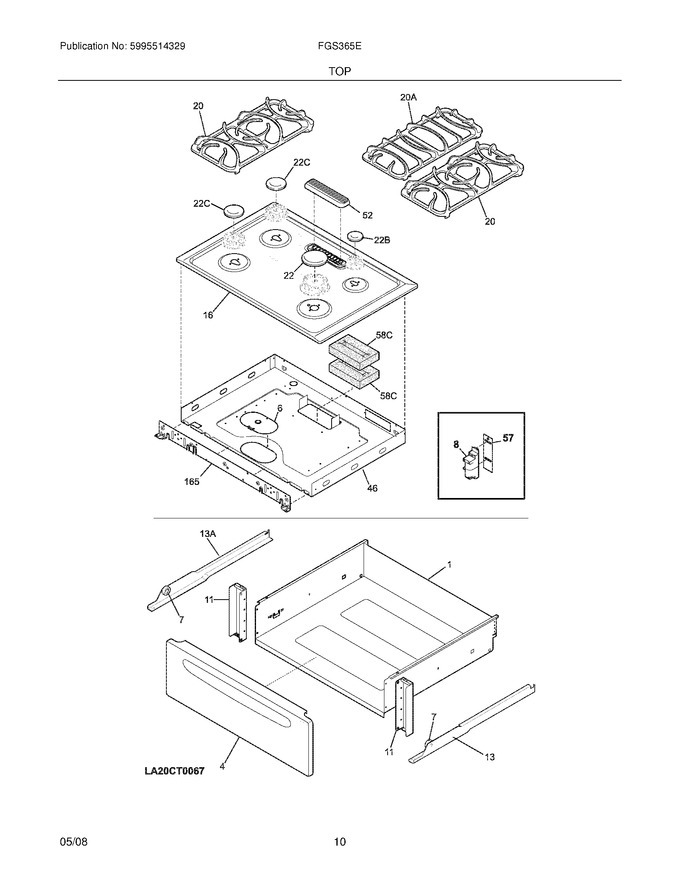

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 143.39
4	318298902		Panel,drawer ,bisque ,front		Appelez-nous	-
6	318229900		Cover,wiring		Appelez-nous	-
7	318332200		Roller,nylon		Appelez-nous	-
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318295405		Maintop,bisque		Appelez-nous	-
20	318231302		Grate,brown ,(2)		Appelez-nous	-
22	316242805		Cap,11k Burner ,brown		Appelez-nous	-
46	318225411		Box,burner		Appelez-nous	-
52	318291202		Cover,flue ,bisque ,outer   (Replaces: 318291201)		Appelez-nous	-
57	318295611		Panel,service				$ 15.12
165	318227504		Plate,mounting		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
20A	318307502		Grate,center ,brown		Appelez-nous	-
22B	316206504		Cap,5k Burner ,brown		Appelez-nous	-
22C	316242905		Cap,9.5k Burner ,brown		Appelez-nous	-
58C	318285097		Insulation,flue		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
