SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

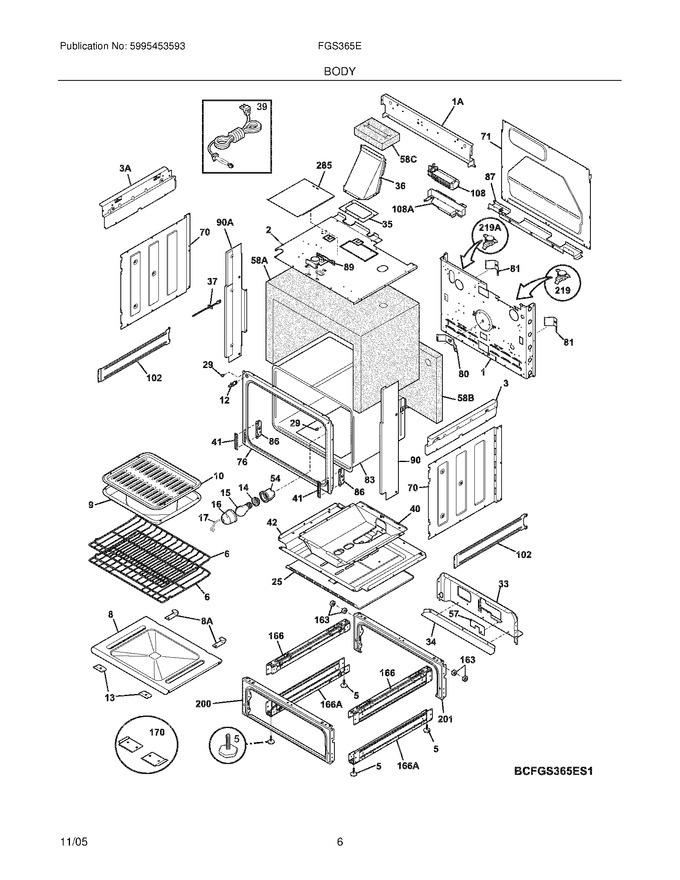

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259202		Back,main		Appelez-nous	-
2	318258902		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318262502		Rack,oven		Appelez-nous	-
8	318290503		Panel,oven ,bottom   (Replaces: 318290501)		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
13	318327100		Bracket,oven Bottom		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318291900		Bracket,shield ,lower				$ 94.27
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
33	318287800		Panel,valve Mtg.		Appelez-nous	-
34	318289400		Panel,valve Filler		Appelez-nous	-
35	318291300		Seal,flue Cavity		Appelez-nous	-
36	318288801		Box,flue Assy.		Appelez-nous	-
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
40	318291800		Box,oven Burner		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
42	318288700		Bracket,body ,middle		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
57	318268300		Cover,burner Opening		Appelez-nous	-
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056217		Front,oven				$ 143.06
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
83	318327001		Liner,oven		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	318260604		Bracket,cable Mtg.		Appelez-nous	-
90	318296902		Panel,filler ,white ,rh				$ 73.71
102	318327500		Panel,reinforcement		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
166	318298401		Bracket,base Support ,upper ,(2)		Appelez-nous	-
170	318335500		Anti-tip & Accessories				$ 46.94
200	318335600		Frame & Wheel Assembly,black				$ 133.82
201	318298210		Frame,drawer				$ 81.95
285	318236201		Shield,hidden Wires		Appelez-nous	-
1A	318225112		Panel,main Back ,upper		Appelez-nous	-
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318285084		Insulation,oven Wrapper		Appelez-nous	-
58B	318285085		Insulation,oven Back		Appelez-nous	-
58C	318285088		Insulation,flue ,(3)		Appelez-nous	-
8A	318306700		Bracket,retainer ,(2)		Appelez-nous	-
90A	318296903		Panel,filler ,white ,lh				$ 67.73
F108	318073028		Motor,blower   (Replaces: 318073018)			Immediately	$ 271.69
F108	318251300		Bracket,fan Support				$ 54.60
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 44.23
F166	318298402		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F219	318003614		Thermostat,safety			Immediately	$ 84.61
F219	318003624		Thermostat,safety   (Replaces: 318003613)			Immediately	$ 23.39
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F89	318261230		Motor,latch Assy   (Replaces: 318261202)				$ 129.80
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318306601		Harness,wiring ,main		Appelez-nous	-
NI	318165800		Spacer,(2)				$ 17.72
NI	3051050		Screw-shoulder				$ 12.29
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41

    View Diagram in Separate Window       Print Part List
