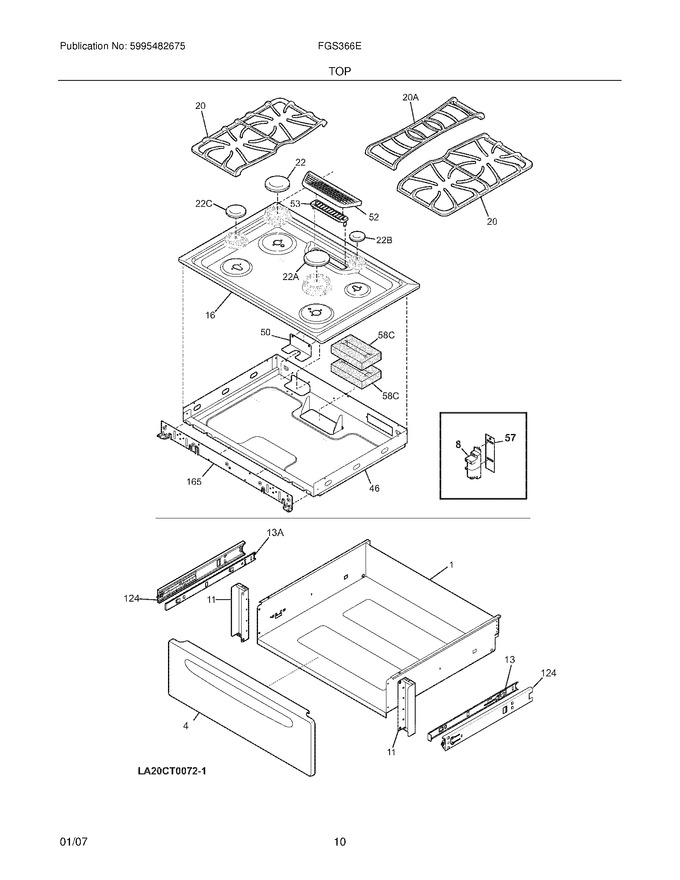

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318298903		Panel,drawer ,black ,front		Appelez-nous	-
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318259504		Glide,warmer ,inner Rh				$ 29.49
16	318327302		Maintop Assembly,black				$ 248.83
20	316424601		Grate,black ,(2)				$ 279.14
22	316213600		Cap,12k Burner ,black				$ 130.08
46	318291400		Box,burner		Appelez-nous	-
50	318328500		Cover,burner Box		Appelez-nous	-
52	318291126		Cover,flue ,black ,outer   (Replaces: 318291102)				$ 87.55
53	318308303		Cover,flue ,black				$ 112.19
57	318295611		Panel,service				$ 15.12
124	318330600		Glide,drawer ,outer/rh & Lh ,(2)				$ 77.97
165	318227504		Plate,mounting		Appelez-nous	-
13A	318259505		Glide,warmer ,inner Lh				$ 33.03
20A	318307101		Grate,black ,center		Appelez-nous	-
22A	316271900		Cap,17k Burner ,black				$ 170.91
22B	316206600		Cap,5k Burner ,black				$ 96.39
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
58C	318285097		Insulation,flue		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
