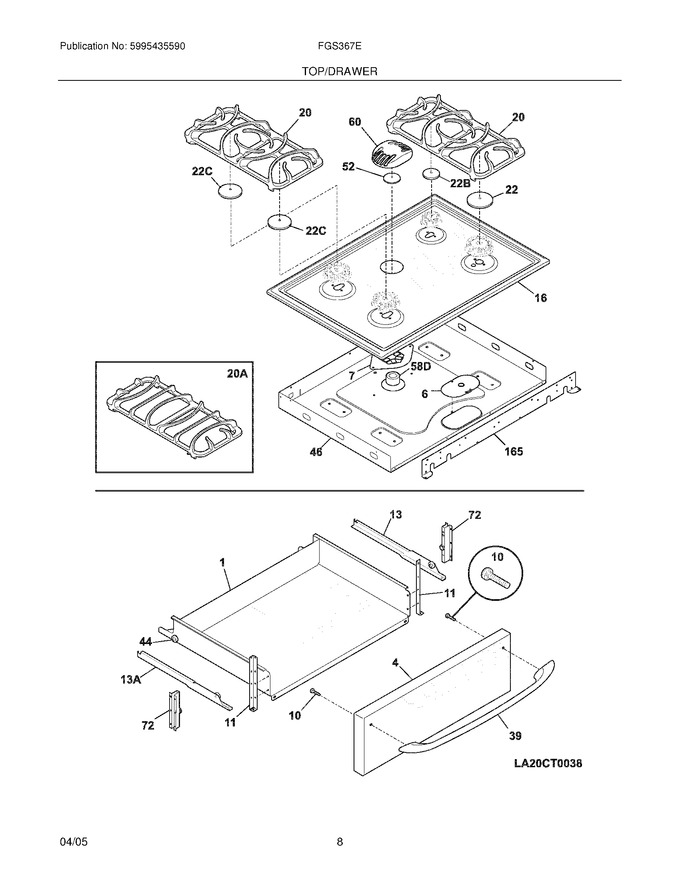

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318267500		Body,drawer		Appelez-nous	-
4	318134015		Panel,drawer ,white ,front		Appelez-nous	-
6	318229900		Cover,wiring		Appelez-nous	-
7	318268400		Bracket,insulation ,box		Appelez-nous	-
10	5304447480		Screw,12-14 X 1/2				$ 7.94
11	318263100		Bracket,drawer ,(2)		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318295401		Maintop,white		Appelez-nous	-
20	318231301		Grate,gray ,(2)		Appelez-nous	-
22	316242804		Cap,11k Burner ,gray		Appelez-nous	-
39	316270201		Handle,door ,white			Immediately	$ 128.29
44	5304441057		Wheel,(2)		Appelez-nous	-
46	318225403		Box,burner		Appelez-nous	-
52	318269100		Cap,flue ,black ,inner		Appelez-nous	-
60	318269201		Cover,flue ,white ,outer		Appelez-nous	-
72	318281700		Support & Roller Assy.,(2)		Appelez-nous	-
165	318227501		Plate,mounting		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
20A	318287601		Grate,grey ,center		Appelez-nous	-
22B	316206503		Cap,5k Burner ,gray				$ 115.92
22C	316242904		Cap,9.5k Burner ,gray				$ 145.43
58D	318268200		Insulation,oven Vent ,(3)		Appelez-nous	-
NI	5304441056		Nut,keps ,1/4-20		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	5303325173		Cap-plug		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318266600		Gasket,flue		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17

    View Diagram in Separate Window       Print Part List
