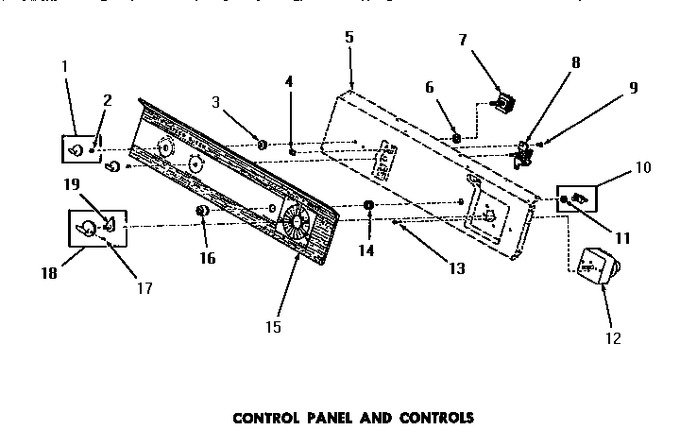

11 - Control Panel & Controls


12 - Door Release


13 - Drum Light & Cover Plate


14 - Drum Light & Cover Plate


15 - Exhaust Fan


16 - Front Frame & Air Shroud


17 - Heater Box


18 - Loading Door


19 - Loading Door (thru Sn 31v9368 & S66y580)


20 - Motor, Idler & Belt


21 - Non-``m`` Models--standing Pilot Burner


22 - Panel Support Plate & Bracket


23 - Panels


24 - Rear Frame & Frame Base


25 - Wire & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23402		Knob,control		Appelez-nous	-
2	23392		Clip For 26816 Knob		Appelez-nous	-
3	24391		Knurled Nut		Appelez-nous	-
4	23407		Nut,speed-8a Tinn C15		Appelez-nous	-
5	Y00000000		See Note Panel Support Plate		Appelez-nous	-
6	91176		Lockwasher,3/8 Intshkp				$ 1.44
7	52623		Switch,fabric Selector		Appelez-nous	-
8	53516		Buzzer		Appelez-nous	-
9	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
10	53563		Switch,door Release		Appelez-nous	-
11	Sub. To D513506		Nut,hex 15/32-32   (Replaces: 52947)		Appelez-nous	-
12	53466CP		Timer   (Replaces: 53466)		Appelez-nous	-
13	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
14	23406		Knurled Nut		Appelez-nous	-
15	100091233		Panel,control   (Replaces: 54995)				$ 247.86
16	23130		Switch Collar		Appelez-nous	-
17	25285		Setscrew		Appelez-nous	-
18	24858		Assy,knob-timer		Appelez-nous	-
19	24857		Indicator		Appelez-nous	-
