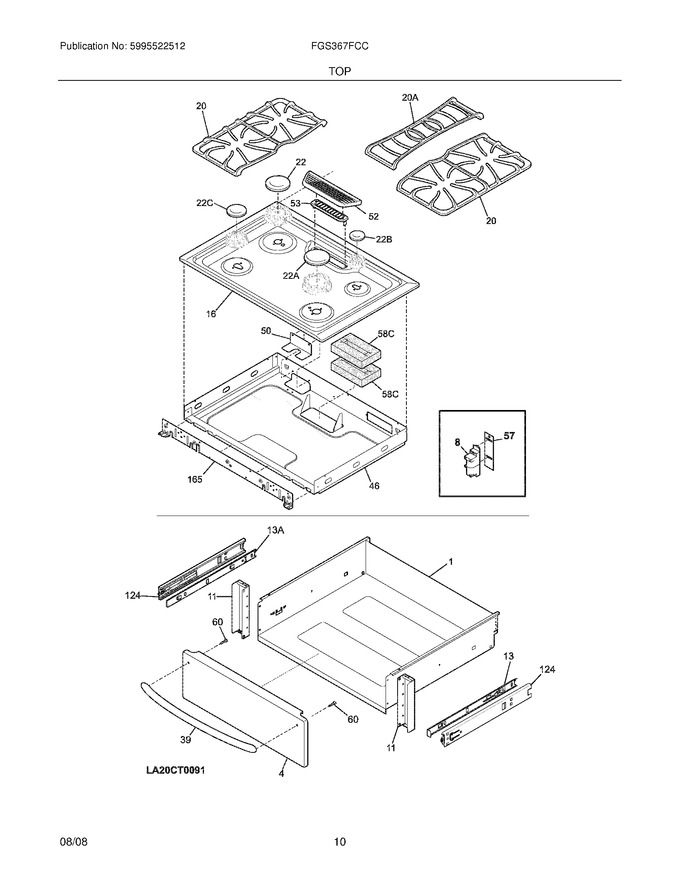

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107308		Drawer				$ 100.73
4	318298819		Panel,drawer ,stainless ,front		Appelez-nous	-
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318259504		Glide,warmer ,inner Rh				$ 29.49
16	318287513		Cook Top Assy,glass ,black		Appelez-nous	-
20	316424603		Grate,black ,(2)		Appelez-nous	-
22	316213605		Cap,12k Burner ,black				$ 143.06
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
46	318291400		Box,burner		Appelez-nous	-
50	318328500		Cover,burner Box		Appelez-nous	-
52	318291126		Cover,flue ,black ,outer   (Replaces: 318291102)				$ 87.55
53	318308303		Cover,flue ,black				$ 112.19
57	318295611		Panel,service				$ 15.12
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
124	318330600		Glide,drawer ,outer/rh & Lh ,(2)				$ 77.97
165	318227504		Plate,mounting		Appelez-nous	-
13A	318259505		Glide,warmer ,inner Lh				$ 33.03
20A	318221771		Grate,black ,center		Appelez-nous	-
22A	316271904		Cap,16/17k Burner ,black				$ 206.11
22B	316206604		Cap,5k Burner ,black				$ 102.69
22C	316213505		Cap,9.5k Burner ,black				$ 102.30
58C	318285097		Insulation,flue		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
