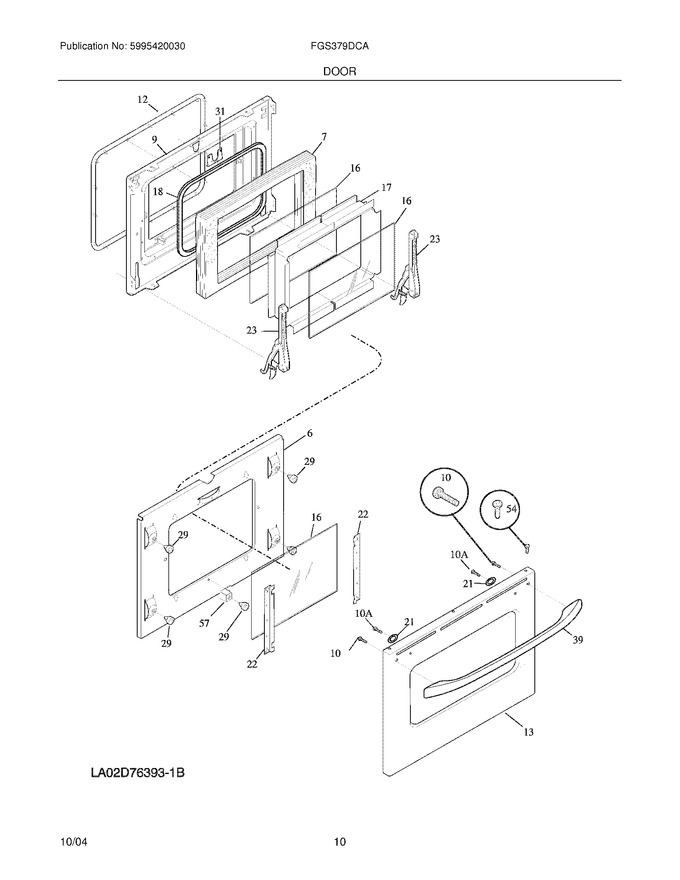

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318056815		Deflector,door		Appelez-nous	-
7	318133781		Insulation,oven Door		Appelez-nous	-
9	318157041		Liner,inner Door Assy		Appelez-nous	-
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
12	318053103		Gasket,oven Door Seal   (Replaces: 318253001)			Immediately	$ 150.03
13	318187940		Stainless Panel,oven Door ,w/ Glass		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
21	134716700		Washer   (Replaces: 3201909)				$ 2.12
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	5303310828		Hinge-oven Door, (2)		Appelez-nous	-
29	318147410		Bumper,base		Appelez-nous	-
31	5303310536		Latch,oven Door				$ 30.66
39	318231200		Handle,black		Appelez-nous	-
56	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
57	318172902		Stiffener Glass				$ 1.47
10A	5304417411		Screw,handle Mtg. ,10-12 X 1				$ 7.82
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
