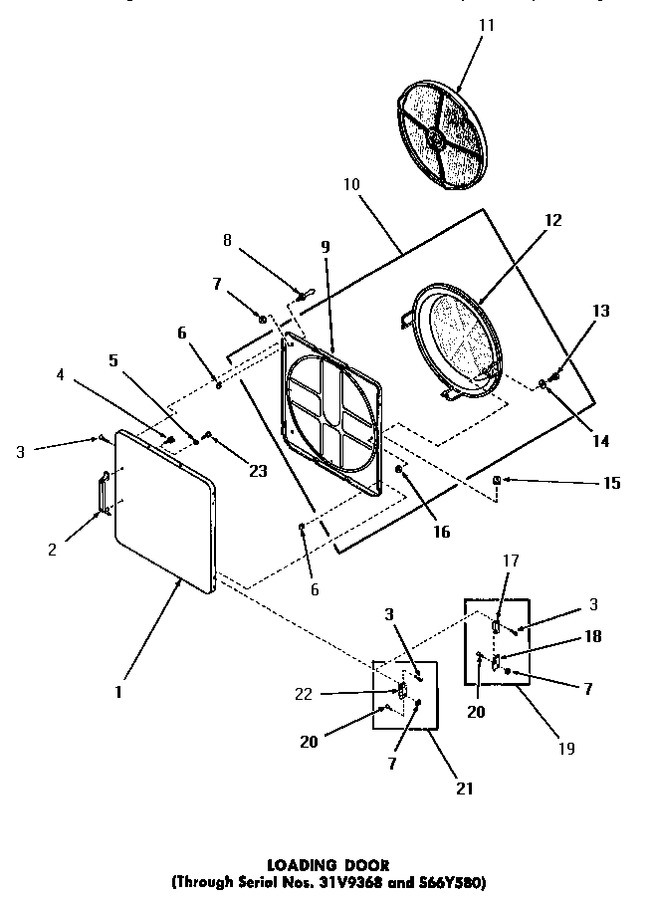

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52489W		Outer Door Panel, White		Appelez-nous	-
1	52489A		Outer Door Panel, Avocado		Appelez-nous	-
1	52489H		Outer Door Panel, Harvest Gold		Appelez-nous	-
1	52489C		Outer Door Panel, Coppertone		Appelez-nous	-
2	54068		Pull,door		Appelez-nous	-
3	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
4	52150		Screw, Thermostat		Appelez-nous	-
5	Y20278		Lockwasher		Appelez-nous	-
6	52865		Speed Nut		Appelez-nous	-
7	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
8	51992		Strike,door		Appelez-nous	-
9	54730		Inner Door Panel		Appelez-nous	-
10	54738		Assy,housing & Panel		Appelez-nous	-
11	53002		No Longer Available		Appelez-nous	-
12	54731		Assy,grill&support-pur		Appelez-nous	-
13	24688		Cap Screw		Appelez-nous	-
14	Q6275		Washer		Appelez-nous	-
15	51858		Grommet		Appelez-nous	-
16	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
19	Y00000000		See Note Models Dg3300 & Dg3240		Appelez-nous	-
20	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-
21	Y00000000		See Note All Other Models		Appelez-nous	-
22	70014		Hinge (comml. Part)		Appelez-nous	-
23	22024		Hex Head Screw				$ 32.49
