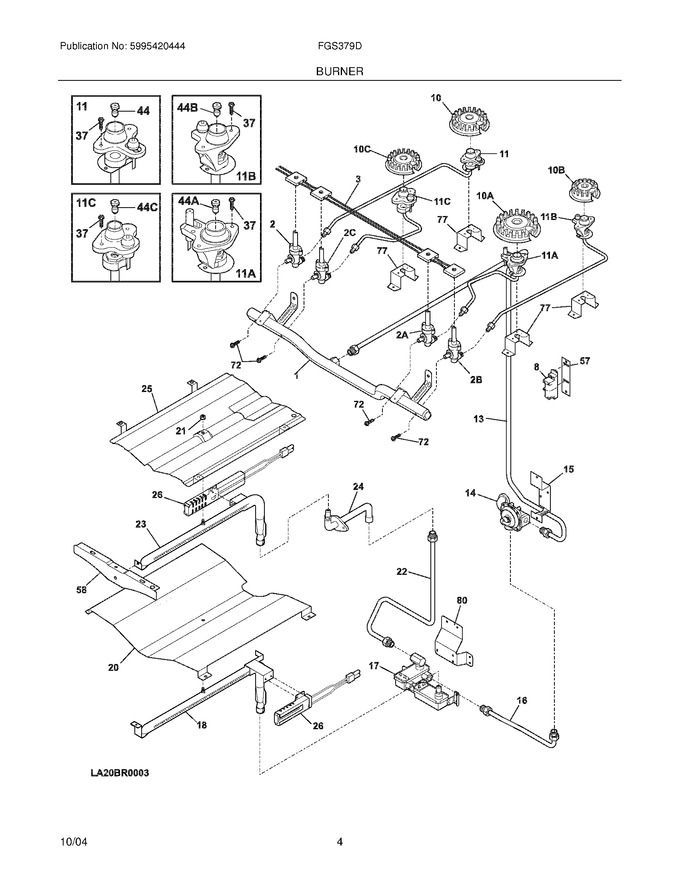

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318262800		Bracket,regulator		Appelez-nous	-
16	318267000		Tube,valve To Regul		Appelez-nous	-
20	5304442084		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
25	5304415401		Baffle,broil Burner		Appelez-nous	-
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	316237901		Orifice,top Burner ,12k				$ 64.46
57	318295600		Panel,service		Appelez-nous	-
58	318123600		Shield, Broiler		Appelez-nous	-
72	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
77	318192600		Bracket,burner Mtg		Appelez-nous	-
80	318267300		Bracket,valve Mtg.		Appelez-nous	-
44A	316237900		Orifice,top Burner ,14k				$ 63.80
44B	316237903		Orifice-top Burner,5k				$ 67.83
44C	316237902		Orifice,top Burner ,9.5k				$ 65.22
F1	318226100		Pipe,manifold				$ 205.70
F10	316212300		Burner,sealed ,12k				$ 105.95
F10A	316223400		Burner,sealed ,14k				$ 94.50
F10B	316206400		Burner,sealed ,5k		Appelez-nous	-
F10C	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F11	318221310		Ignitor/orifice Assy.,top Burner ,lh Rear,11k ,w/holder-tube				$ 250.37
F11A	318221314		Ignitor/orifice Assy.,top Burner ,rh Front,14k ,w/holder-tube				$ 217.51
F11B	318221312		Ignitor/orifice Assy.,top Burner ,rh Rear,5k ,w/holder-tube				$ 214.88
F11C	318221311		Ignitor/orifice Assy.,top Burner ,lh Front,9.5k ,w/holder-tube				$ 280.98
F13	318267100		Tube,rgltr To Manf ,with Fittings				$ 44.99
F14	318269300		Regulator,pressure		Appelez-nous	-
F17	318268500		Valve,safety		Appelez-nous	-
F18	318266900		Burner,oven		Appelez-nous	-
F2	318233920		Valve,top Burner ,11000 Btu				$ 172.94
F22	318267200		Tube,broiler Supply		Appelez-nous	-
F23	318283700		Burner,broiler		Appelez-nous	-
F24	318267800		Mixer Elbow,broiler		Appelez-nous	-
F26	5303935066		Ignitor,burner   (Replaces: 316428600)			Immediately	$ 59.58
F2A	318233930		Valve,top Burner ,14000 Btu				$ 118.32
F2B	318233900		Valve,top Burner ,5000 Btu				$ 161.53
F2C	318233910		Valve,top Burner ,9500 Btu				$ 132.56
F3	318232600		Wiring Harness,w/igntr Switch		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	318268600		Harness,wiring ,valve				$ 56.32
NI	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-
NI	318186907		Lp Conversion Kit				$ 80.12
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
