SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body

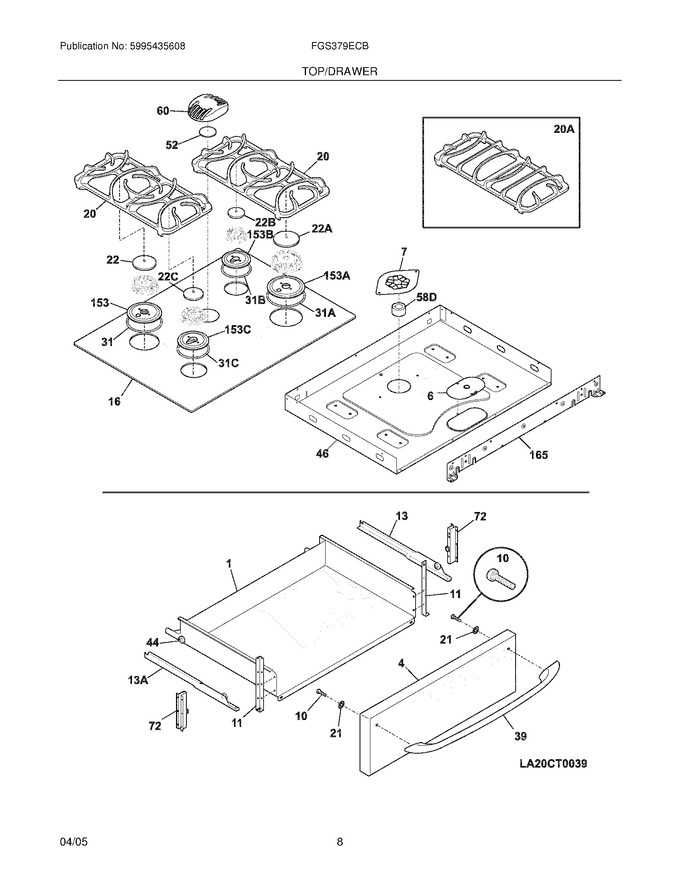

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318267500		Body,drawer		Appelez-nous	-
4	318107913		Panel,drawer ,stainless		Appelez-nous	-
6	318229900		Cover,wiring		Appelez-nous	-
7	318268400		Bracket,insulation ,box		Appelez-nous	-
10	5304447480		Screw,12-14 X 1/2				$ 7.94
11	318263100		Bracket,drawer ,(2)		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318223709		Main Top,assy. ,glass ,black		Appelez-nous	-
20	318231300		Grate,black ,(2)				$ 432.71
21	134716700		Washer   (Replaces: 3201909)				$ 2.12
22	316242800		Cap,11k Burner ,black				$ 132.41
31	316242001		Seal,12k Burner				$ 23.06
39	316270200		Handle,door ,black				$ 136.40
44	5304441057		Wheel,(2)		Appelez-nous	-
46	318225403		Box,burner		Appelez-nous	-
52	318269100		Cap,flue ,black ,inner		Appelez-nous	-
53	318266600		Gasket,flue		Appelez-nous	-
60	318269200		Cover,flue ,black ,outer		Appelez-nous	-
72	318281700		Support & Roller Assy.,(2)		Appelez-nous	-
153	316241701		Skirt,12k Burner ,black				$ 80.00
165	318227500		Plate,mounting				$ 41.11
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
20A	318287600		Grate,black ,center		Appelez-nous	-
22A	316219800		Cap,14k Burner ,black				$ 163.17
22B	316206500		Cap,5k Burner ,black				$ 92.66
22C	316242900		Cap,9.5k Burner ,black				$ 51.61
31A	316242000		Seal,14k Burner				$ 73.71
31B	316242003		Seal,5k Burner				$ 15.17
31C	316242002		Seal,9.5k Burner				$ 25.02
58D	318268200		Insulation,oven Vent ,(3)		Appelez-nous	-
F153	316241801		Skirt,9.5k Burner ,black				$ 79.01
F153	316264901		Skirt,14k Burner ,black				$ 85.39
F153	316241901		Skirt,5k Burner ,black				$ 82.32
NI	5303325173		Cap-plug		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	5304441056		Nut,keps ,1/4-20		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51

    View Diagram in Separate Window       Print Part List
