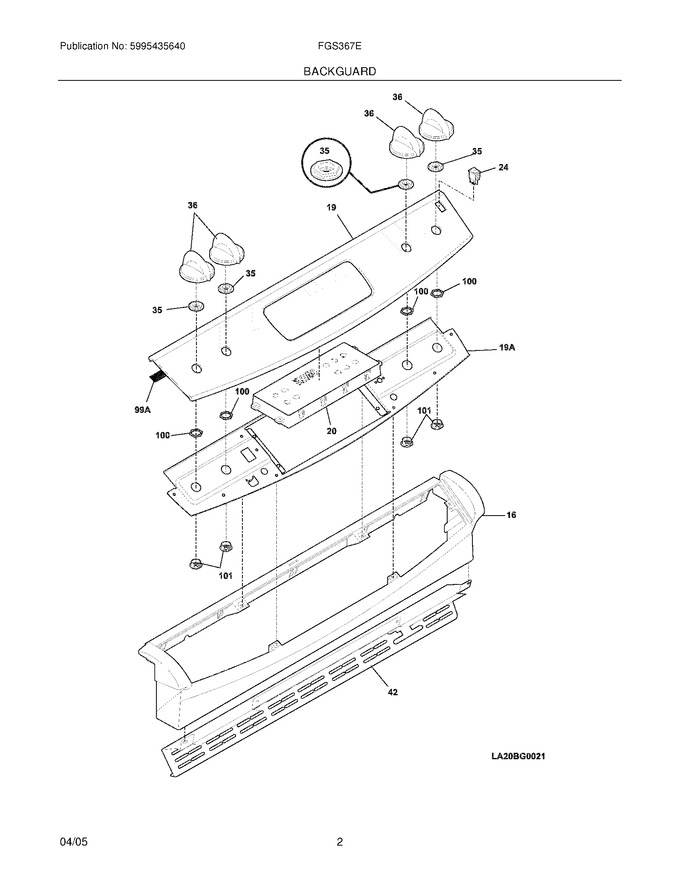

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235002		Console,assy. ,bisque ,w/ End Caps		Appelez-nous	-
19	318235170		Panel,control ,bisque		Appelez-nous	-
35	318233712		Retainer,control Panel ,bisque		Appelez-nous	-
36	318229312		Knob,control ,bisque		Appelez-nous	-
42	318224313		Trim,vent ,black ,bottom		Appelez-nous	-
69	5303288565		Screw,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
100	318233800		Nut,hex				$ 63.53
101	318233400		Bushing,retainer				$ 43.21
19A	318224402		Panel,control Mtg.		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	318185493		Clock/timer,electronic ,bisque		Appelez-nous	-
F24	318037520		Switch,rocker ,bisque ,oven Light				$ 61.64
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
NI	316220804		Overlay,clock ,bisque   (Replaces: 316220806)			Immediately	$ 42.53
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
