02 - Backguard
03 - Cooktop Parts
04 - Burner, Manifold And Gas Control
05 - Body Parts
06 - Door Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

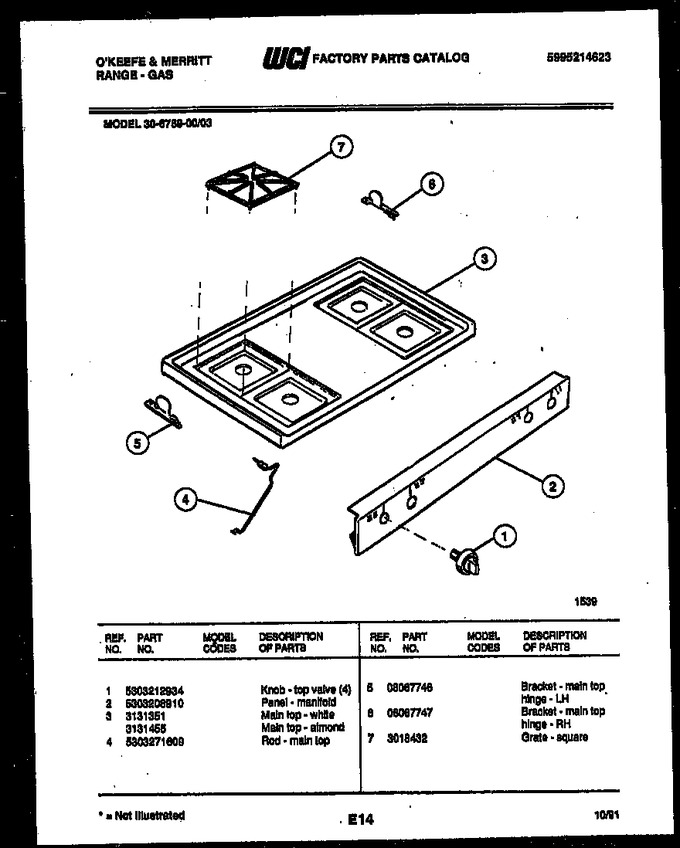

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212934 | Knob - Top Valve (4) |
|
- | |||||
| 2 | 5303208910 | Panel-manifold |
|
- | |||||
| 3 | 3131455 | Main Top, Almond |
|
- | |||||
| 3 | 3131351 | Main Top,white |
|
- | |||||
| 4 | 5303271609 | Rod-main Top |
|
- | |||||
| 5 | 08067746 | Bracket-main Top Hinge Lh |
|
- | |||||
| 6 | 08067747 | Bracket-main Top Hinge Rh |
|
- | |||||
| 7 | 3018432 | Grate Square |
|
- |
