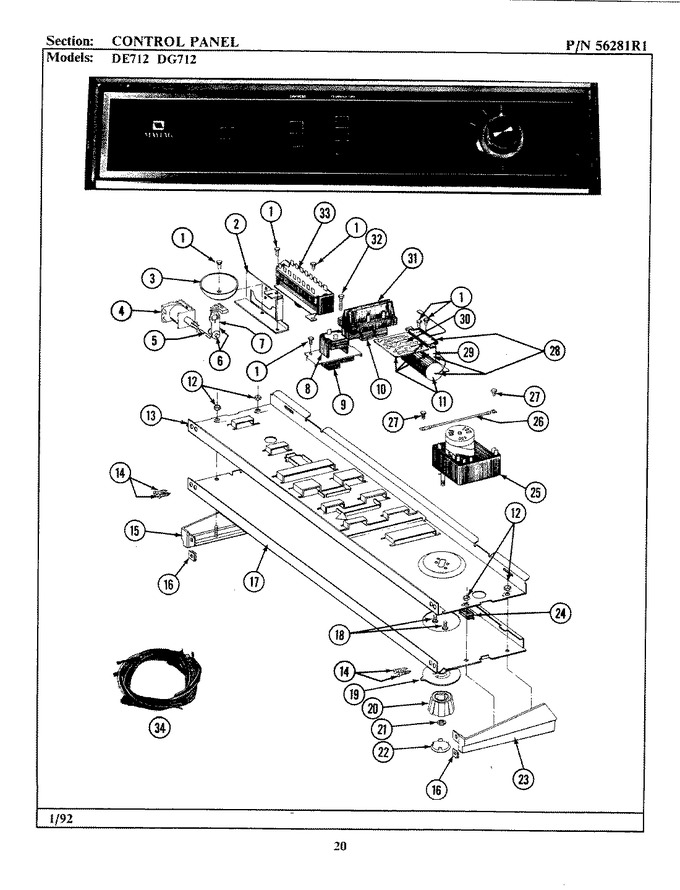

01 - Control Panel
02 - Door
03 - Front View
04 - Gas Valve
05 - Motor Drive
06 - Motor Drive-thermostats
07 - Rear View
08 - Tumbler-beige
09 - Tumbler-gray
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 2 | 314165 | Chime And Solenoid Bracket | 00 |
|
- | ||||
| 3 | Y311660 | Chime | 00 |
|
- | ||||
| 4 | Y303350 | Solenoid | 00 |
|
- | ||||
| 5 | Y312260 | Link | 00 |
|
- | ||||
| 6 | Y303771 | Chime Actuator Assembly | 00 |
|
- | ||||
| 7 | Y313321 | Chime Actuator | 00 |
|
- | ||||
| 8 | 305950 | Dryness-press Care Switch | 00 |
|
- | ||||
| 9 | 215210 | Button For Switch | 00 |
|
- | ||||
| 10 | 215211 | Button For Switch | 00 |
|
- | ||||
| 11 | 306042 | Electronic Control | 00 |
|
- | ||||
| 12 | 214872 | Palnut, End Cap | 00 |
|
- | ||||
| 13 | 314184 | Back Up Plate | 00 |
|
- | ||||
| 14 | 210932 | Screw, No.8 X 9/16 Ctsk | 00 |
|
- | ||||
| 15 | 214815 | End Cap F/control Panel-lh | 00 |
|
- | ||||
| 16 | 214894 | Fastener, End Cap | 00 |
|
- | ||||
| 17 | 306386 | Control Panel | 02 |
|
- | ||||
| 17 | 305886 | Control Panel | 00 |
|
- | ||||
| 18 | WP488234 | Screw -relay To Tub Support (Replaces: 910708) | 00 |
|
$ 6.07 | ||||
| 19 | 314422 | Timer Dial Indicator | 00 |
|
- | ||||
| 20 | 314421 | Knob For Timer | 00 |
|
- | ||||
| 21 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 22 | 215164 | Cap For Knob | 00 |
|
- | ||||
| 23 | 214816 | End Cap F/control Panel-rh | 00 |
|
- | ||||
| 24 | 214897 | Pad, Control Panel | 00 |
|
- | ||||
| 25 | WP306039 | Timer Rpr (Replaces: 306039) | 00 |
|
$ 282.40 | ||||
| 26 | 204807 | Grnd.wire,supp.plte To Top Cvr | 00 |
|
- | ||||
| 27 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 28 | 306043 | Edgeboard Connector Assembl | 00 |
|
- | ||||
| 29 | 313611 | Bracket F/electronic Contro (Replaces: 314168) | 00 |
|
$ 35.65 | ||||
| 30 | Y305392 | Printed Circuit Board | 00 |
|
- | ||||
| 31 | 305946 | Temperature Switch | 00 |
|
- | ||||
| 32 | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) | 00 |
|
Immediately | $ 7.16 | |||
| 33 | Y305945 | Control Switch | 00 |
|
- | ||||
| 33 | 215211 | Button For Switch | 00 |
|
- | ||||
| 34 | 306182 | Main Wire Harness | 01 |
|
- | ||||
| 34 | 305954 | Wire Harness | 00 |
|
- |
