SELECT A DIAGRAM

01 - Control Panel


02 - Front Panel & Door Assembly


03 - Front View


04 - Inlet Duct, Gas Valve & Combustion Cone


05 - Installation Accessories


06 - Lint Screen, Tumbler (front & Back)


07 - Motor, Blower, Base Frame & Thermostats


08 - Rear View


09 - Thermostats

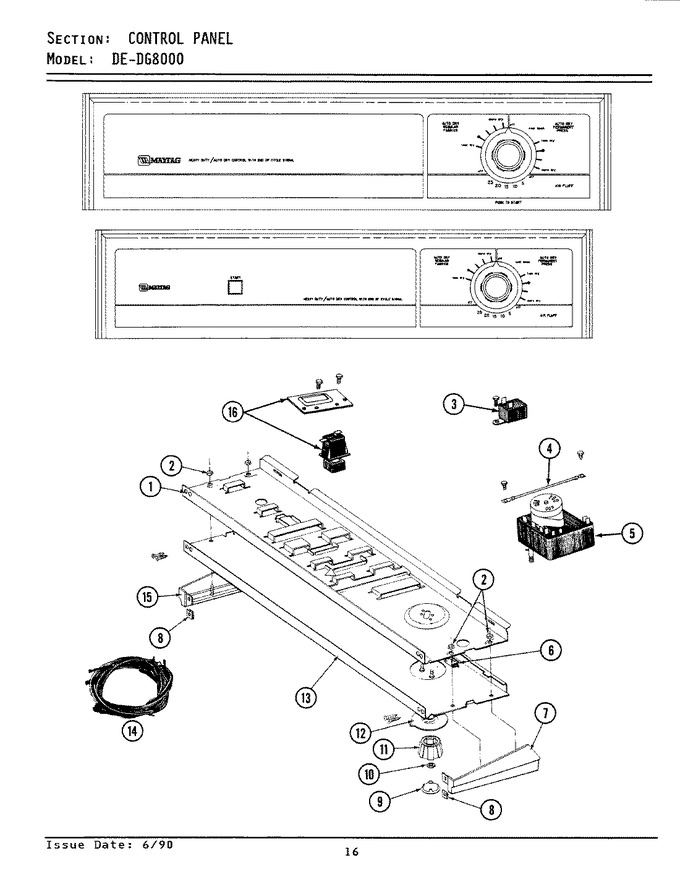

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	314184		Back Up Plate	00	Appelez-nous	-
2	214872		Palnut, End Cap	00	Appelez-nous	-
3	WP694419		Buzzer - Non-adjustable   (Replaces: 305205)	00			$ 114.90
3	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	00			$ 6.75
4	204807		Grnd.wire,supp.plte To Top Cvr	00	Appelez-nous	-
4	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
5	WP488234		Screw -relay To Tub Support   (Replaces: 910708)	00			$ 6.07
5	306483		Timer	00	Appelez-nous	-
5	308088CP		Timer   (Replaces: 308088)	01	Appelez-nous	-
6	214897		Pad, Control Panel	00	Appelez-nous	-
7	210932		Screw, No.8 X 9/16 Ctsk	00	Appelez-nous	-
7	314727		End Cap - Right Hand	00	Appelez-nous	-
8	214894		Fastener, End Cap	00	Appelez-nous	-
9	WPW10133501		Cap For Timer Knob   (Replaces: 314723)	00			$ 54.76
10	W10155650		Nut   (Replaces: 312273)	00			$ 12.03
11	W11232017		Knob For Timer   (Replaces: 314724)	00			$ 11.13
12	314725		Timer Dial Indicator	00	Appelez-nous	-
13	308094		Control Panel Assy	01	Appelez-nous	-
13	307748		Control Panel	00	Appelez-nous	-
14	308086		Wire Harness	01	Appelez-nous	-
14	307303		Wire Harness	00	Appelez-nous	-
15	314726		End Cap - Left Hand	00	Appelez-nous	-
16	307305		Switch Push To Start	00	Appelez-nous	-
16	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	00			$ 6.75

    View Diagram in Separate Window       Print Part List
