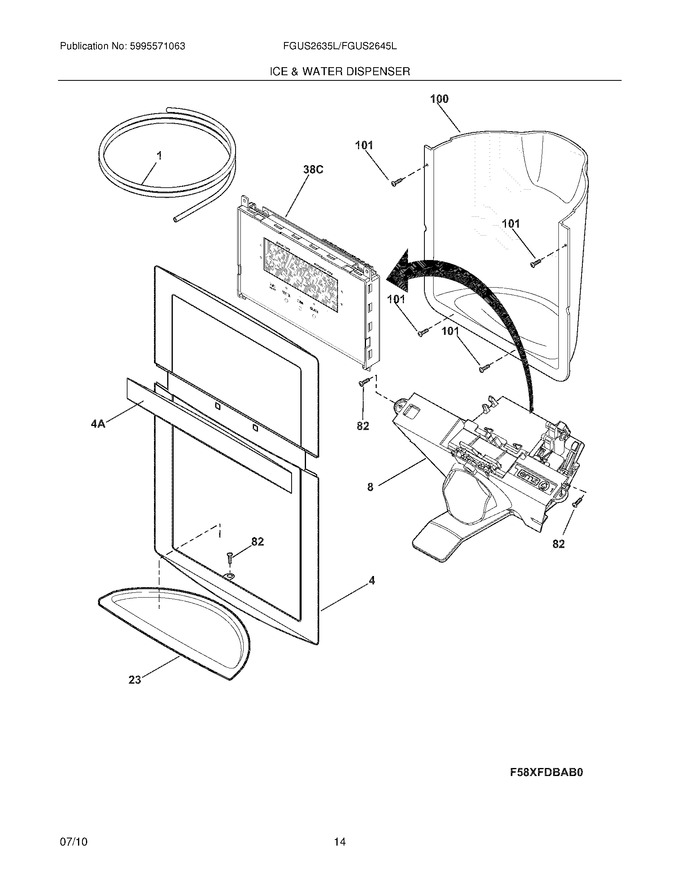

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	242034202		Cover-module,black				$ 53.07
8	242074213		Module-dispenser,black   (Replaces: 242074201)				$ 255.86
23	242092403		Drip Tray,black		Appelez-nous	-
82	240363403		Screw,8-18 X 0.500 ,2		Appelez-nous	-
100	241753302		Liner-ice Dispenser,black				$ 53.78
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
4A	242033902		Trim,facade				$ 40.31
F38C	242115004		Board-control,assembly				$ 299.56
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 40.40
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
