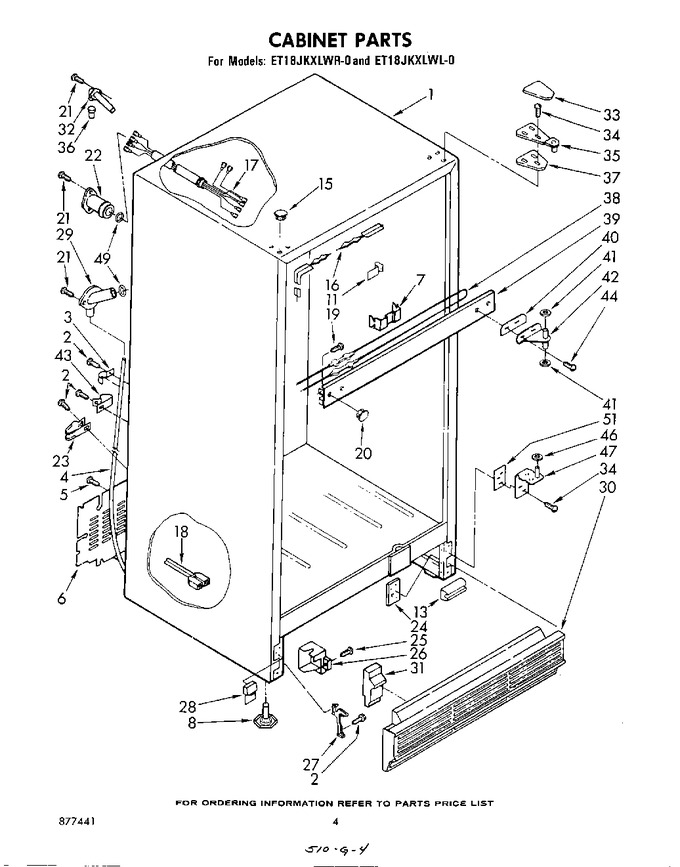

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
3	836077		Clamp (2)		Appelez-nous	-
4	8316810		Tube, Drain   (Replaces: 940091)				$ 107.76
5	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
6	850639		Cover		Appelez-nous	-
7	942478		Mullion, Clip (2)		Appelez-nous	-
8	836392		Leveler (2)		Appelez-nous	-
11	935663		Clip, Heater (4)		Appelez-nous	-
13	546131		Bumper (2)		Appelez-nous	-
15	842031		Plug, Hole (3) (white)		Appelez-nous	-
15	989876		Plug, Hole (3) (golden Harvest)		Appelez-nous	-
15	989877		Plug, Hole (3) (new Avocado)		Appelez-nous	-
15	989875		Plug, Hole (3) (coffee)		Appelez-nous	-
15	989195		Plug, Hole (3) (almond)		Appelez-nous	-
16	943397		Heater, Stile		Appelez-nous	-
17	937267		Cabinet Wiring Assembly		Appelez-nous	-
18	548734		Wire Assembly (water Valve)		Appelez-nous	-
19	488624		Screw, 8 X 3/8		Appelez-nous	-
19	487470		Screw (repair)		Appelez-nous	-
20	989881		Plug, Hole (2) (coffee)		Appelez-nous	-
20	989883		Plug, Hole (2) (new Avocado)		Appelez-nous	-
20	989882		Plug, Hole (2) (golden Harvest)		Appelez-nous	-
20	989193		Plug, Hole (2) (almond)		Appelez-nous	-
20	835974		Plug, Hole (2) (white)		Appelez-nous	-
21	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 7.20
22	937249		Tunnel, Wiring		Appelez-nous	-
23	939009		Clamp, Cord		Appelez-nous	-
24	836162		Plate, Tap		Appelez-nous	-
25	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.01
26	549947		Box, Junction		Appelez-nous	-
27	844614		Support, Grille (2)		Appelez-nous	-
28	934569		Fill, Grille		Appelez-nous	-
29	939271		Drain Fitting		Appelez-nous	-
30	934567		Grille		Appelez-nous	-
31	836372		Insert, Air Baffle		Appelez-nous	-
32	WP2196157		Fitting, Water Tube   (Replaces: 841907)			Immediately	$ 10.79
33	989895		Cover, Hinge (coffee)		Appelez-nous	-
33	989194		Cover, Hinge (almond)		Appelez-nous	-
33	989896		Cover, Hinge (golden Harvest)		Appelez-nous	-
33	989897		Cover, Hinge (new Avocado)		Appelez-nous	-
33	842010		Cover, Hinge (white)		Appelez-nous	-
34	WP999367		Screw, 10-32 X 3/4   (Replaces: 488948)				$ 7.07
34	488949		Screw (repair)		Appelez-nous	-
35	842039		Hinge & Shim (top)		Appelez-nous	-
36	WP487996		Cap, Plastic   (Replaces: 487996)				$ 7.43
37	836151		Shim, Top Hinge (.030)		Appelez-nous	-
38	941681		Heater, Mullion		Appelez-nous	-
39	989905		Rail, Center (coffee)		Appelez-nous	-
39	989191		Rail, Center (almond)		Appelez-nous	-
39	989906		Rail, Center (golden Harvest)		Appelez-nous	-
39	836066		Rail, Center (white)		Appelez-nous	-
39	989907		Rail, Center (new Avocado)		Appelez-nous	-
40	836155		Shim (.030)		Appelez-nous	-
41	WP488296		Washer, 11/64 (2)   (Replaces: 488296)				$ 6.47
42	836153		Hinge & Shim (center)		Appelez-nous	-
43	940108		Clamp, Cord (2)		Appelez-nous	-
44	WP999367		Screw, 10-32 X 1/2   (Replaces: 489077)				$ 7.07
44	488949		Screw (repair)		Appelez-nous	-
46	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.12
47	836687		Hinge, L.h. Model (bottom)		Appelez-nous	-
47	836686		Hinge, R.h. Model (bottom)		Appelez-nous	-
49	940121		Gasket, Seal		Appelez-nous	-
51	836196		Shim (bottom) (.030)		Appelez-nous	-
