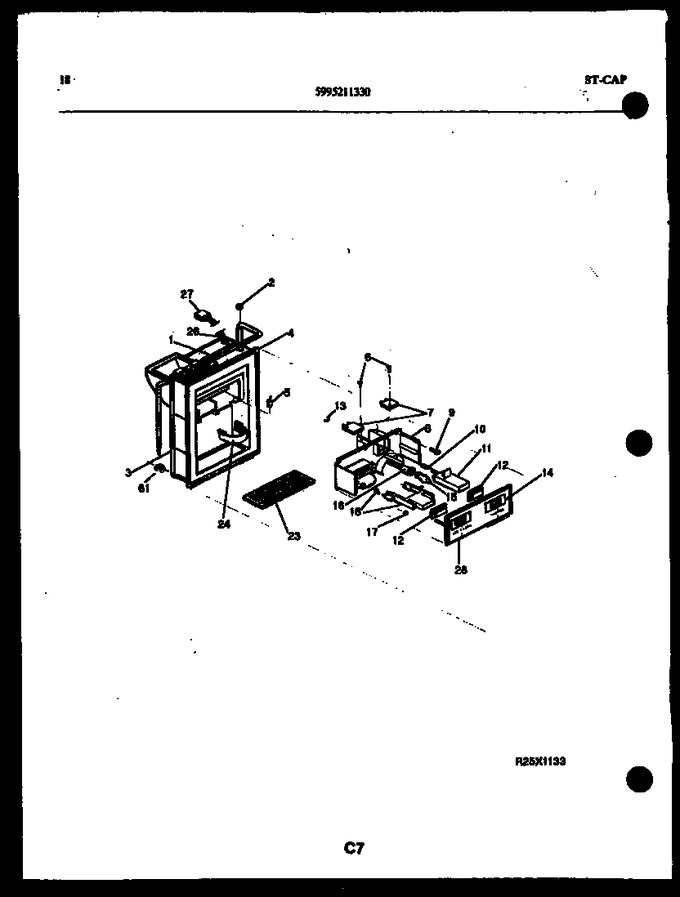

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308017048 | Inlet & Pilot Tube Assy |
|
- | |||||
| 2 | 5303001066 | Grommet-water Tube |
|
- | |||||
| 3 | 5308015588 | Heater-door Housing |
|
- | |||||
| 4 | 5303279777 | Housing-frzr Dr Pnl |
|
- | |||||
| 5 | 5308010326 | Clamp-water Tube |
|
- | |||||
| 6 | 5303001073 | Screw, Cr Pan Hd Typ25, 4-24 X 3/4, Switch Mtg, (4) |
|
- | |||||
| 7 | 5300185542 | Switch-solenoid (2) |
|
- | |||||
| 8 | 5303204878 | Plate-switch Mtg Cvr |
|
- | |||||
| 9 | 5303001083 | Screw-plate Mtg, Tw Hx Cr Pan Hd, 8-16-1/2, (4) |
|
- | |||||
| 10 | 5303001072 | Spring-wtr Actuator |
|
- | |||||
| 11 | 5303001077 | Actuator-water |
|
- | |||||
| 12 | 5303279568 | Button-i&w Actuator, (2) |
|
- | |||||
| 13 | 5302832214 | Clip - Water Actuator |
|
- | |||||
| 14 | 5303279541 | Label-dec Frnt Pnl |
|
- | |||||
| 15 | 5300187180 | Light Bulb/lamp |
|
- | |||||
| 16 | 5303001076 | Socket-light/lamp |
|
- | |||||
| 17 | 5303001081 | Screw-adjusting |
|
- | |||||
| 18 | 3001075 | Actuator-ice, W/suction Cup |
|
- | |||||
| 23 | 5303208845 | Grid-water Spill |
|
- | |||||
| 24 | 5318000402 | Skirt-ice Deflector |
|
- | |||||
| 26 | 5303001082 | Wiring Harness-freezer Door |
|
- | |||||
| 27 | 5303001047 | Plug-housing, Harness Bottom |
|
- | |||||
| 28 | 5303279538 | Panel, Decorative Frnt |
|
- | |||||
| 61 | 5308017047 | Nut, Self-threading, 1/8 |
|
- | |||||
| *22082 | 5318653301 | Diode Kit |
|
- |
