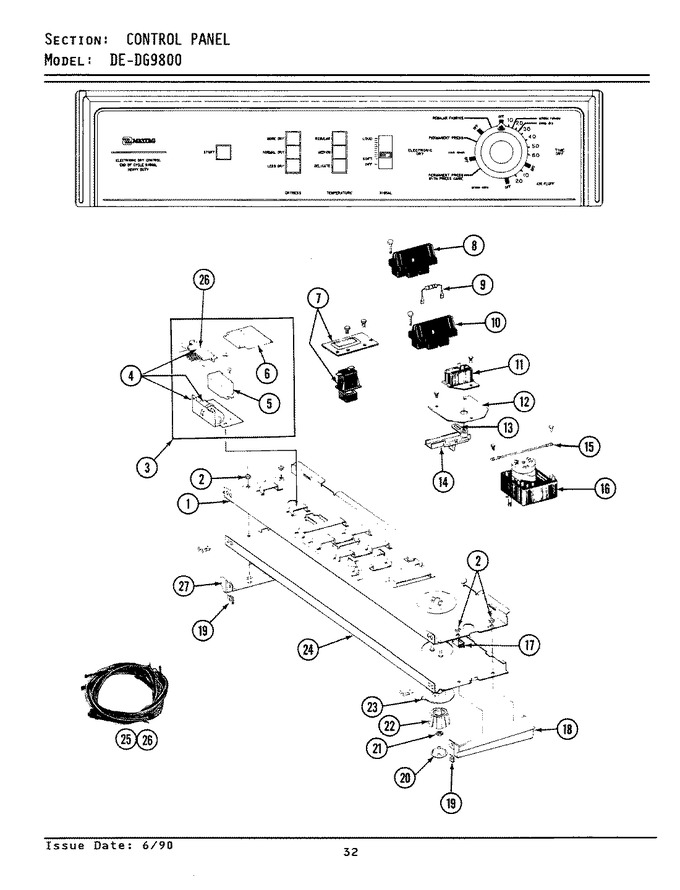

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 314184 | Back Up Plate | 00 |
|
- | ||||
| 2 | 214872 | Palnut, End Cap | 00 |
|
- | ||||
| 3 | 307898 | Electronic Control | 00 |
|
- | ||||
| 3 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 4 | 307897 | Edge Board Connector | 00 |
|
- | ||||
| 4 | 311863 | Screw For Caution Plate----na | 00 |
|
- | ||||
| 5 | WP3177991 | Screw (Replaces: Y251119) | 00 |
|
Immediately | $ 6.47 | |||
| 5 | 307899 | Relay | 00 |
|
- | ||||
| 6 | Y307896 | Pc Board | 00 |
|
- | ||||
| 7 | 307305 | Switch Push To Start | 00 |
|
- | ||||
| 7 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 8 | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) | 00 |
|
Immediately | $ 7.16 | |||
| 8 | 307304 | Temp Control Switch 3 Button | 00 |
|
- | ||||
| 9 | 306917 | Resistor, Med Temp Gas | 00 |
|
- | ||||
| 10 | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) | 00 |
|
Immediately | $ 7.16 | |||
| 10 | 307304 | Temp Control Switch 3 Button | 00 |
|
- | ||||
| 11 | Y305204 | Buzzer - Adjustable | 00 |
|
- | ||||
| 11 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 12 | 314169 | Bracket For Buzzer | 00 |
|
- | ||||
| 12 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 13 | 314171 | Pivot Arm For Buzzer | 00 |
|
- | ||||
| 14 | 307364 | Slide Assy | 00 |
|
- | ||||
| 15 | 204807 | Grnd.wire,supp.plte To Top Cvr | 00 |
|
- | ||||
| 15 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 16 | Y307404 | Timer | 00 |
|
- | ||||
| 16 | WP488234 | Screw -relay To Tub Support (Replaces: 910708) | 00 |
|
$ 6.07 | ||||
| 17 | 214897 | Pad, Control Panel | 00 |
|
- | ||||
| 18 | 210932 | Screw, No.8 X 9/16 Ctsk | 00 |
|
- | ||||
| 18 | 207216 | End Cap Rh | 00 |
|
- | ||||
| 19 | 214894 | Fastener, End Cap | 00 |
|
- | ||||
| 20 | 215821 | Cap, Knob | 00 |
|
- | ||||
| 21 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 22 | 315041 | Knob, Timer | 00 |
|
- | ||||
| 23 | 315042 | Dial Skirt | 00 |
|
- | ||||
| 24 | 307321 | Control Panel | 00 |
|
- | ||||
| 25 | 307294 | Wire Harness | 00 |
|
- | ||||
| 26 | 307422 | Wire Harness | 00 |
|
- | ||||
| 27 | 207215 | End Cap Lh | 00 |
|
- |
