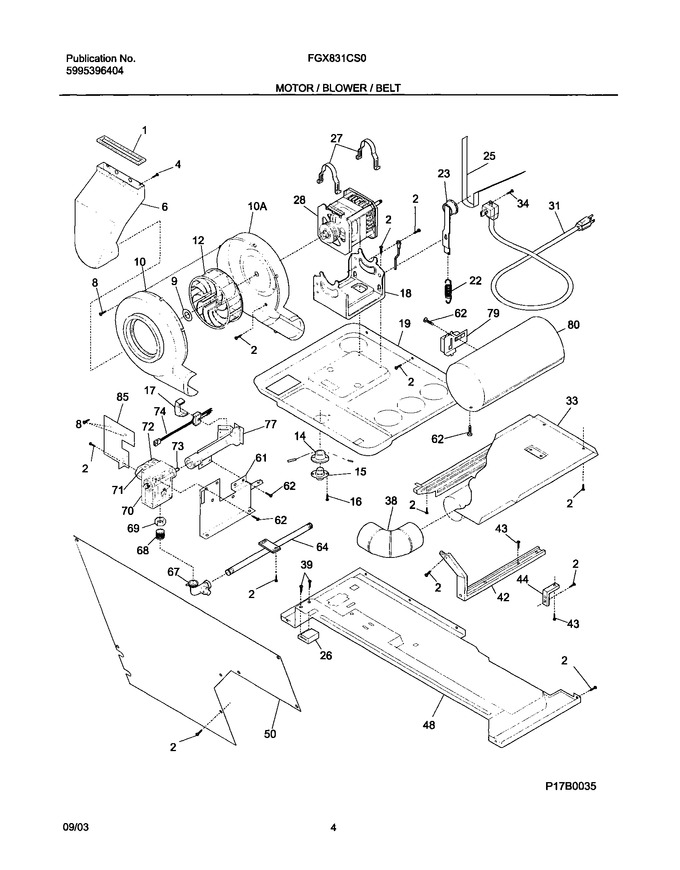

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 16.30
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	131362400		Fastener,push-in				$ 9.41
6	5304521121		Duct,air   (Replaces: 134086300)				$ 118.56
8	3205245		Screw,pan Head ,6-18ab X 0.60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	5304485558		Housing,blower ,front ,with Seal   (Replaces: 131784500)			Immediately	$ 141.75
12	131476300		Blower Wheel			Immediately	$ 47.00
16	134178901		Screw,quadrex Ph ,8-18ab X 0.500   (Replaces: 131311900)				$ 14.89
17	131715500		Clip,ignitor Mtg				$ 9.22
18	131413600		Cradle,motor Mount ,with Idler Stud				$ 104.30
19	131363901		Panel,motor Cradle Mt		Appelez-nous	-
22	3205241		Spring-idler				$ 75.83
23	5304507499		Idler Arm Assy,with Pulley   (Replaces: 131863100)			Immediately	$ 42.66
26	5303212870		Block,support ,bottom Panel		Appelez-nous	-
27	134242400		Clamp,motor Mtg.			Immediately	$ 35.76
31	134500500		Power Cord,electric Svce   (Replaces: 134099900)				$ 43.24
33	131731410		Shield,access Area ,cover		Appelez-nous	-
34	134154100		Screw,hex Washer Head ,10-32 X 0.375 ,ground				$ 13.46
38	3204320		Elbow,exhaust Duct		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
42	3204324		Bracket,marriage ,interior		Appelez-nous	-
43	131751500		Screw,hex Head ,12-24t 0.63				$ 9.50
44	3204326		Bracket,l Mounting ,cabinet Rear ,external				$ 43.24
48	131731300		Panel,dryer ,bottom Rear		Appelez-nous	-
50	3204329		Cover,safety ,lower Front				$ 40.16
61	5303309493		Bracket,gas Valve Mtg		Appelez-nous	-
62	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
64	134145200		Pipe,gas		Appelez-nous	-
68	134185100		Tail Piece,coupling		Appelez-nous	-
70	5303207409		Valve Gas				$ 433.76
71	5300622602		Solenoid,secondary Coil		Appelez-nous	-
72	5308015680		Solenoid,booster Coil		Appelez-nous	-
73	5303211036		Orifice,natural Gas ,size 44		Appelez-nous	-
85	131712300		Shield-heat		Appelez-nous	-
10A	5304485558		Housing,blower ,rear   (Replaces: 134145100)			Immediately	$ 141.75
F14	131658101		Thermostat-heater				$ 41.68
F15	131322600		Thermostat Control				$ 74.52
F25	137292700		Belt,dryer Drive   (Replaces: 134163500)			Immediately	$ 9.34
F28	8581341966035		Motor,dryer Drive ,with Pulley   (Replaces: 134196600)			Immediately	$ 142.51
F67	131498500		Valve,gas Shutoff		Appelez-nous	-
F69	5308015194		Union,hex Nut				$ 13.72
F74	5303937186		Ignitor Assy   (Replaces: 5303281151)				$ 80.61
F77	131763500		Burner,gas ,adjustable		Appelez-nous	-
F79	5303281135		Sensor,radiant			Immediately	$ 102.06
F80	131712405		Tube-burner   (Replaces: 131712401)				$ 34.70
NI	PCK3100		Lp Conversion Kit,natural To Lp   (Replaces: 5303937053)				$ 60.25
