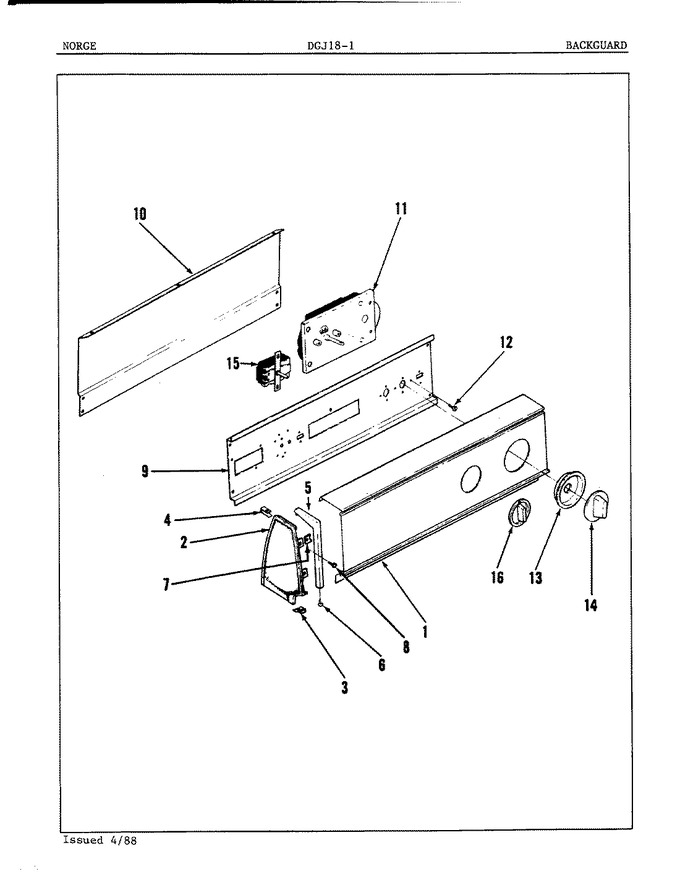

01 - Control Panel (orig. Rev. A)
02 - Cylinder & Drive (orig.-rev.a)
03 - Gas Carrying (orig. Rev. A)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-0819 | Control Panel |
|
- | |||||
| 2 | 25-7649 | Screw |
|
- | |||||
| 2 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 2 | 53-0265 | Lh Endcap |
|
- | |||||
| 2 | 53-0264 | Rh Endcap |
|
- | |||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 5 | 53-0280 | Trim, End Cap (lt) |
|
- | |||||
| 5 | 53-0279 | Trim, End Cap (rt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 53-0365 | Control Shield |
|
- | |||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 10 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 10 | 53-0268 | Rear Shield |
|
- | |||||
| 11 | 53-0635 | Timer Motor |
|
- | |||||
| 11 | 53-0661 | Timer |
|
- | |||||
| 12 | 25-0205 | Screw |
|
- | |||||
| 12 | 53-0729 | Timer Knob Asm |
|
- | |||||
| 13 | 35-0092 | Skirt Asm |
|
- | |||||
| 14 | 53-0651 | Timer Knob |
|
- | |||||
| 15 | 53-0456 | Switch, Selector (heat) |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 16 | 35-0167 | Selector Knob |
|
- |
