SELECT A DIAGRAM

01 - Control Panel (rev. E-g)


02 - Cylinder & Drive (rev.e-g)

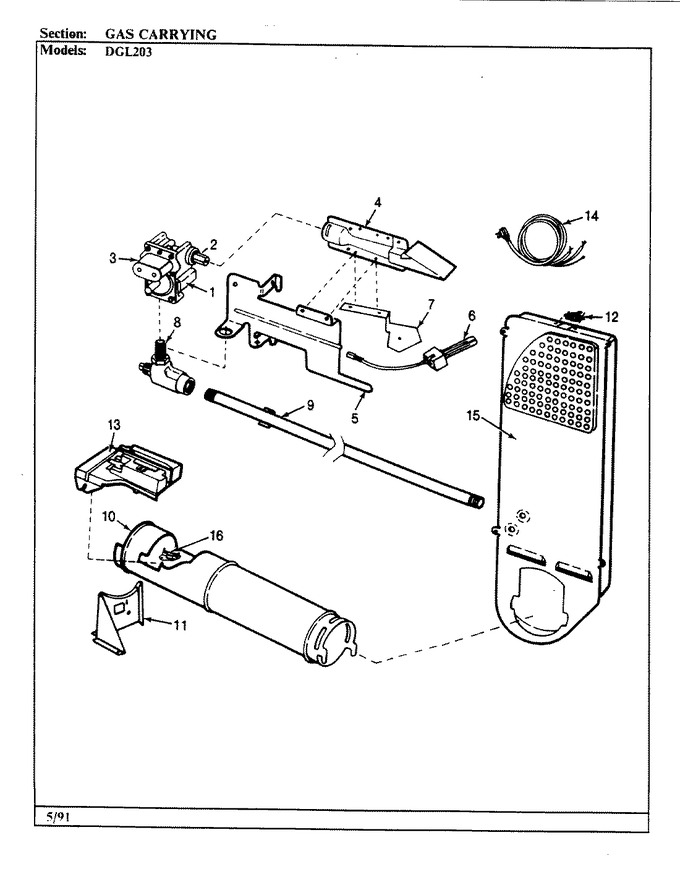

03 - Gas Carrying (rev. E-g)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-0194		Gas Control Valve	E	Appelez-nous	-
2	63-3570		Burner Orifice	E			$ 25.76
3	279834		Dual Coil   (Replaces: 63-6615)	E		Immediately	$ 29.57
3	279834		Secondary Coil   (Replaces: 63-6614)	E		Immediately	$ 29.57
4	63-6682		Burner Asm	E	Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-7741)	E		Immediately	$ 7.04
5	53-0140		Mtg Bracket	E	Appelez-nous	-
6	WP31001556		Igniter   (Replaces: 53-0689)	E		Immediately	$ 79.78
7	53-0686		Bracket	E	Appelez-nous	-
7	WP8281196		Screw   (Replaces: 25-7744)	E		Immediately	$ 6.47
7	25-3034		Clip, Wiring	E	Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-2134)	E		Immediately	$ 7.04
8	53-0101		Shutoff Valve	E	Appelez-nous	-
9	53-0173		Gas Pipe	E	Appelez-nous	-
10	25-3032		Wiring Clip	E	Appelez-nous	-
10	53-1884		Housing, Heater	E	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-7741)	E		Immediately	$ 7.04
11	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
11	53-0139		Heater Support	E	Appelez-nous	-
12	LA-1053		Hi Lmt Tstat   (Replaces: 53-0143)	E		Immediately	$ 51.07
12	25-0168		Screw	E	Appelez-nous	-
13	WP338906		Sensor   (Replaces: 63-5013)	E		Immediately	$ 46.72
13	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
13	WP90767		Screw   (Replaces: 25-7741)	E		Immediately	$ 7.04
13	WP90767		Screw   (Replaces: 25-2134)	E		Immediately	$ 7.04
14	63-6259		Cord, Power	E	Appelez-nous	-
15	LA-1053		Thermostat, Hi-limit   (Replaces: 53-1096)	E		Immediately	$ 51.07
16	WP63-6766		Conversion Kit (nat-lp)   (Replaces: 63-6766)	E			$ 47.57
16	LA-1053		Fuse Kit, Thermal	E		Immediately	$ 51.07
16	LA-1053		Thermostat, Hi-limit   (Replaces: 53-1096)	E		Immediately	$ 51.07

    View Diagram in Separate Window       Print Part List
