SELECT A DIAGRAM

01 - Cabinet (rev. E)


02 - Control Panel (orig. Rev. A-d)


03 - Control Panel (rev. E)


04 - Cylinder & Drive (orig.-rev. A-d)


05 - Door (rev. E)


06 - Exterior (orig. Rev. A-d)


07 - Gas Carrying (orig. Rev. A-d)


08 - Gas Carrying (rev. E)


09 - Motor & Drive (rev. E)


10 - Tumbler (rev. E)

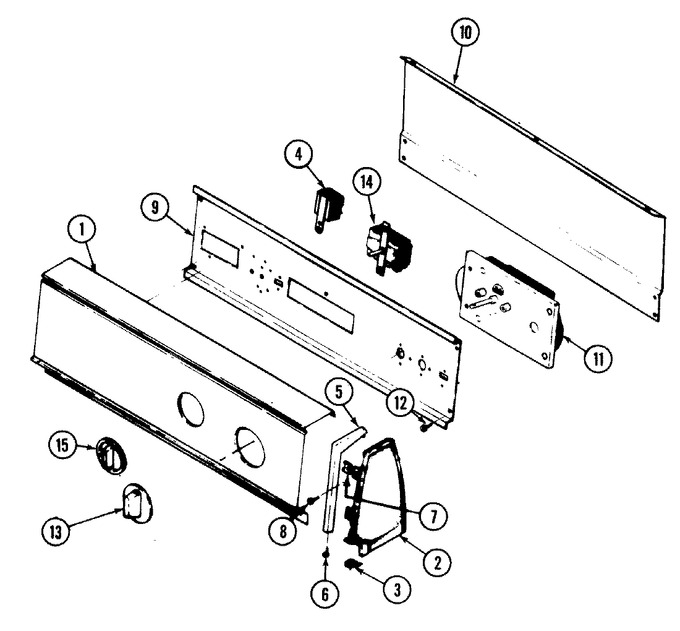

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1284		Control Panel	E	Appelez-nous	-
2	25-7697		Screw	E	Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl	E	Appelez-nous	-
2	35-2488		Cap, End (lt)	E	Appelez-nous	-
2	25-7649		Screw	E	Appelez-nous	-
2	35-2487		Cap, End (rt)	E	Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top	E	Appelez-nous	-
3	25-7697		Screw	E	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
4	53-1639		Buzzer Assy.	E	Appelez-nous	-
5	53-0277		Trim, End Cap (rt)	E	Appelez-nous	-
5	53-0278		Trim, End Cap (lt)	E	Appelez-nous	-
6	25-7760		Screw	E	Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl	E	Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
9	53-1676		Shield, Control	E	Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	E	Appelez-nous	-
11	53-1758		Timer	E	Appelez-nous	-
12	WP33002917		Screw   (Replaces: 25-7435)	E		Immediately	$ 6.90
13	53-1530		Timer Knob & Skirt Assy	E	Appelez-nous	-
14	53-0344		Switch, Temperature	E	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	E		Immediately	$ 7.04
15	35-2186		Knob, Selector	E	Appelez-nous	-
16	53-1447-2		Manual, Use & Care	E	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
