Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 53-1711-24 Top, Cabinet (alm) E Appelez-nous -
2 53-1644-24 Cabinet & Base Assy.(alm) E Appelez-nous -
3 63-5712 Hinge, Cabinet Top E Appelez-nous -
4 33-0930 Pad, Top Hinge E Appelez-nous -
4 WP90767 Screw   (Replaces: 25-3092) E In-Stock Immediately $ 7.04

5 25-3034 Clip, Wiring E Appelez-nous -
6 33-2653 Bumper, Cabinet E Appelez-nous -
7 63-6148 Pin, Locator E Appelez-nous -
8 53-0200 Sleeve, Locator Pin E Appelez-nous -
8 WP3400029 Nut, Locator Pin   (Replaces: 25-0224) E In-Stock Immediately $ 6.98

9 53-0135 Support, Power Cord E Appelez-nous -
10 WP90767 Screw   (Replaces: 25-7857) E In-Stock Immediately $ 7.04

10 53-0136 Cover, Supply Cord E Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

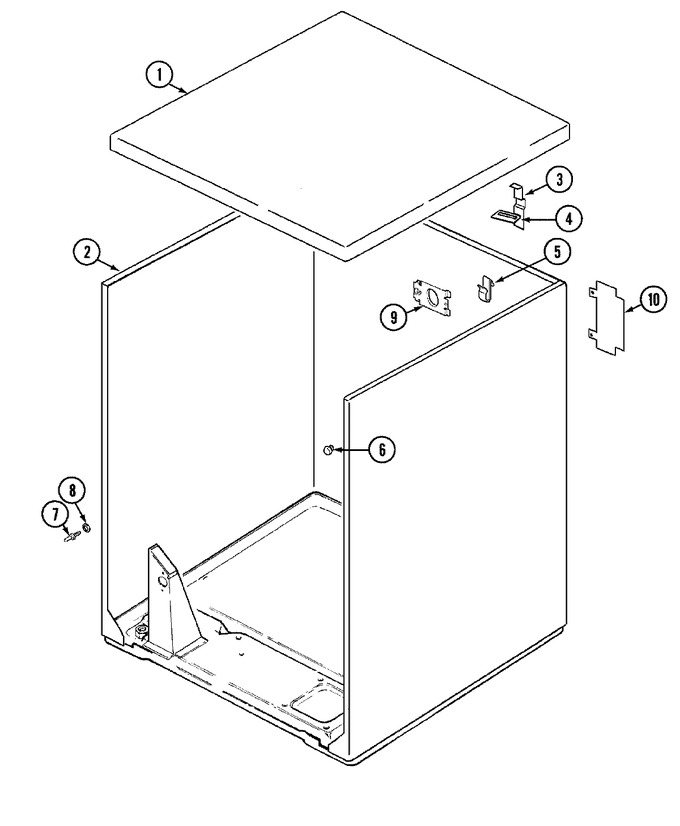

Diagram for DGM202A
