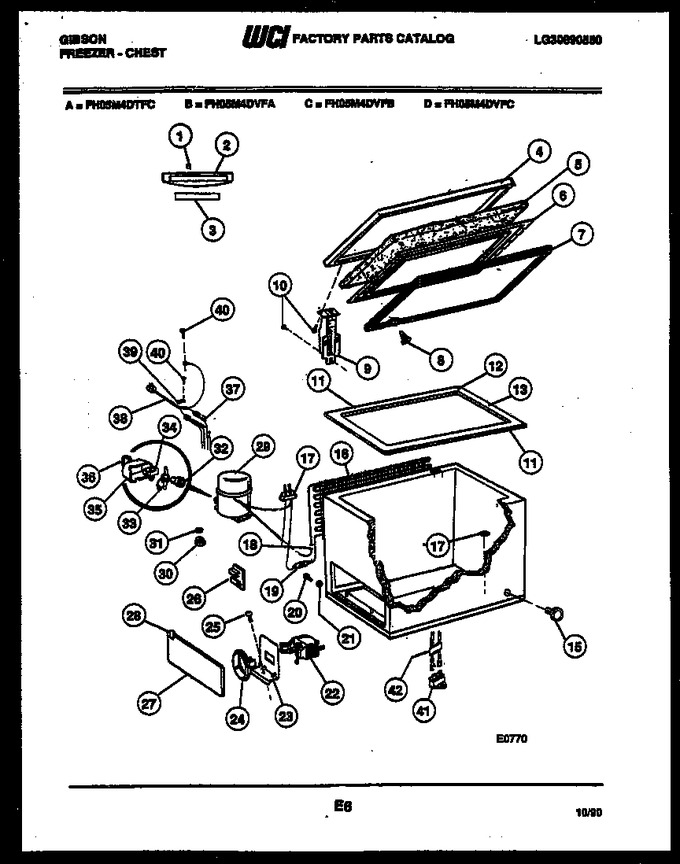

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | F114336 | Handle |
|
- | |||||
| 2 | F114227 | Fastener |
|
- | |||||
| 3 | F300245 | Insert |
|
- | |||||
| 4 | F129577 | Lid Panel-almd Text |
|
- | |||||
| 5 | F128901 | Insulation |
|
- | |||||
| 6 | F114157-0495 | Inner Panel |
|
- | |||||
| 7 | F301155 | Gasket |
|
- | |||||
| 8 | F300792 | Clip (18) |
|
- | |||||
| 9 | F129943 | Hinge |
|
- | |||||
| 10 | F119436 | Screw |
|
- | |||||
| 11 | 5303018318 | Breaker-front & Rear |
|
- | |||||
| 12 | 3018270 | Breaker-corner |
|
- | |||||
| 13 | 3018273 | Breaker Ends |
|
- | |||||
| 14 | F89354 | Plug Drain |
|
- | |||||
| 15 | F128679 | Plug |
|
- | |||||
| 16 | F120779 | Condenser |
|
- | |||||
| 17 | F82585 | Spacer |
|
- | |||||
| 19 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 20 | F50616 | Screw |
|
- | |||||
| 21 | F59650 | Nut |
|
- | |||||
| 22 | F126969 | Control-thermostat |
|
- | |||||
| 23 | F114180 | Bracket |
|
- | |||||
| 24 | F127649 | Knob |
|
- | |||||
| 25 | F81693 | Screw |
|
- | |||||
| 26 | F111846 | Clip |
|
- | |||||
| 27 | F121199-4 | Access Panel-almd |
|
- | |||||
| 28 | F300222 | Retainer (4) |
|
- | |||||
| 29 | 5300186041 | Compressor W/ Electricals-service |
|
- | |||||
| 30 | F114221 | Grommet (4) |
|
- | |||||
| 31 | F118834 | Clip |
|
- | |||||
| 32 | 5303206885 | Overload |
|
$ 119.23 | |||||
| 34 | 5303017753 | Relay |
|
- | |||||
| 35 | 5303206815 | Cover |
|
- | |||||
| 37 | F128527 | Harness & Power Cord |
|
- | |||||
| 38 | Q86065 | Power Cord |
|
- | |||||
| 39 | F116027 | Clamp |
|
- | |||||
| 40 | F81693 | Screw |
|
- |
