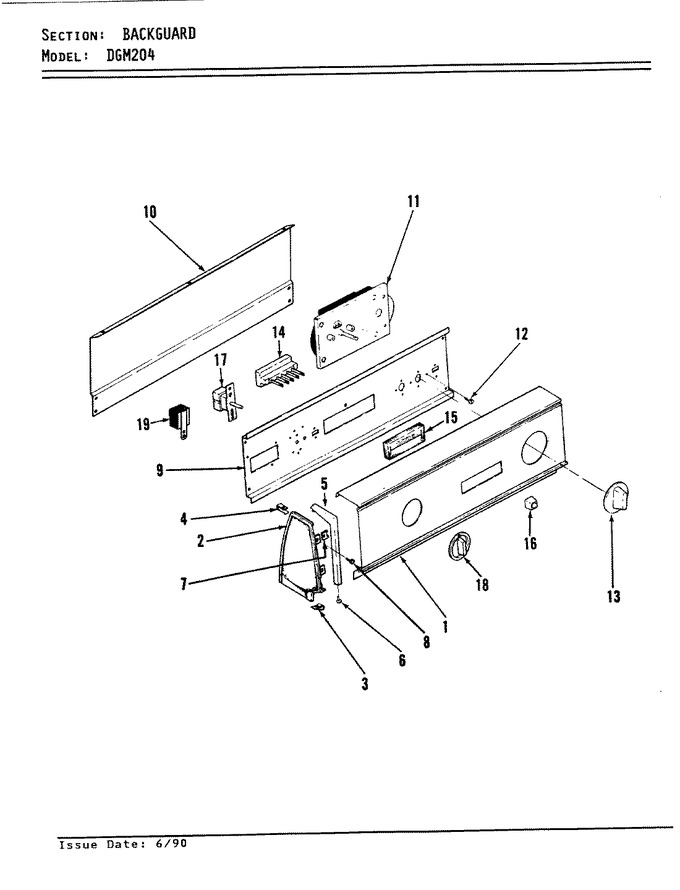

01 - Control Panel (rev. A-d)
02 - Cylinder & Drive (rev.a-d)
03 - Gas Carrying (rev. A-d)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-1283 | Control Panel |
|
- | |||||
| 2 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 2 | 53-0264 | Rh Endcap |
|
- | |||||
| 2 | 53-0265 | Lh Endcap |
|
- | |||||
| 2 | 35-2488 | Cap, End (lt) | A |
|
- | ||||
| 2 | 25-7649 | Screw |
|
- | |||||
| 2 | 35-2487 | Cap, End (rt) | A |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 5 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 5 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 53-0323 | Control Shield |
|
- | |||||
| 9 | 53-1678 | Control Shield |
|
- | |||||
| 10 | 35-2688 | Shield, Control Panel (rear) |
|
- | |||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 10 | 53-0268 | Rear Shield |
|
- | |||||
| 11 | 63-5685 | Timer Motor |
|
- | |||||
| 11 | 53-1300 | Timer |
|
- | |||||
| 11 | 53-1816 | Timer |
|
- | |||||
| 12 | 25-0205 | Screw |
|
- | |||||
| 12 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 13 | 53-1530 | Timer Knob & Skirt Assy |
|
- | |||||
| 14 | 25-7712 | Screw |
|
- | |||||
| 14 | 33-6621 | Bracket, Switch |
|
- | |||||
| 14 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 14 | 53-1296 | Switch |
|
- | |||||
| 15 | 33-8541 | Switch Pad |
|
- | |||||
| 16 | 35-2588 | Pushbutton - Black |
|
- | |||||
| 17 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 17 | 53-1263 | Rotary Switch |
|
- | |||||
| 18 | 35-2186 | Knob, Selector |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 19 | 63-6731 | Buzzer |
|
- | |||||
| 20 | 53-1448 | Manual, Use & Care |
|
- |
