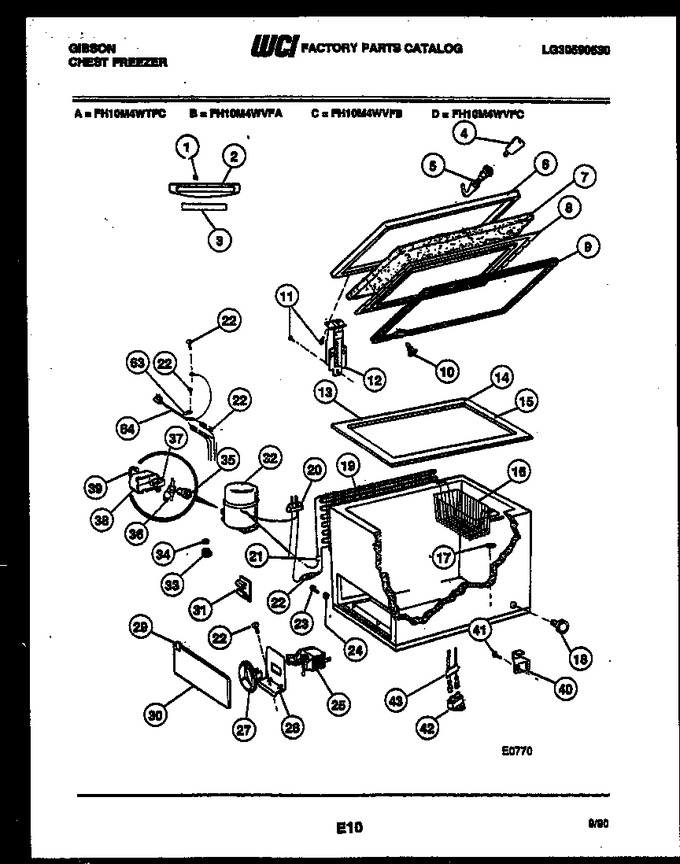

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5309948647		Fastener (2)		Appelez-nous	-
2	5309948646		Handle		Appelez-nous	-
3	5300300245		Insert		Appelez-nous	-
4	297147700		Key   (Replaces: 5308037402)			Immediately	$ 7.57
5	5306599954		Lock-complete		Appelez-nous	-
6	5300129605		Lid Panel				$ 149.57
7	5300128901		Insulation		Appelez-nous	-
8	5303912507		Inner Panel		Appelez-nous	-
9	3200692		Gasket		Appelez-nous	-
10	5303091422		Clip (22)		Appelez-nous	-
11	5309950602		Screw				$ 5.30
12	5300129936		Hinge		Appelez-nous	-
13	3019019		Breaker-front & Rear		Appelez-nous	-
14	3019012		Breaker-corner		Appelez-nous	-
15	3019013		Breaker-end		Appelez-nous	-
16	5303018277		Basket		Appelez-nous	-
17	5306593887		Plug-drain		Appelez-nous	-
18	5300128045		Plug		Appelez-nous	-
19	5300120781		Condenser		Appelez-nous	-
20	06599967		Grommet		Appelez-nous	-
21	530587846		Spacer		Appelez-nous	-
22	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
23	07526998		Screw		Appelez-nous	-
24	F000059650		Nut		Appelez-nous	-
25	5308013601		Control Temperature		Appelez-nous	-
26	5300114180		Bracket		Appelez-nous	-
27	5308011881		Knob		Appelez-nous	-
28	08037851		Screw				$ 3.57
29	5309950877		Retainer		Appelez-nous	-
30	5303121191		Access Panel		Appelez-nous	-
31	06599553		Clip, Wires		Appelez-nous	-
32	5300186041		Compressor W/ Electricals		Appelez-nous	-
33	5308008778		Grommet		Appelez-nous	-
34	5309950343		Clip		Appelez-nous	-
35	3205695		Overload		Appelez-nous	-
35	5303206885		Overload				$ 119.23
37	3205694		Relay		Appelez-nous	-
38	3205696		Cover		Appelez-nous	-
39	3205697		Clamp		Appelez-nous	-
40	5303200693		Latch		Appelez-nous	-
41	5303161233		Screw		Appelez-nous	-
