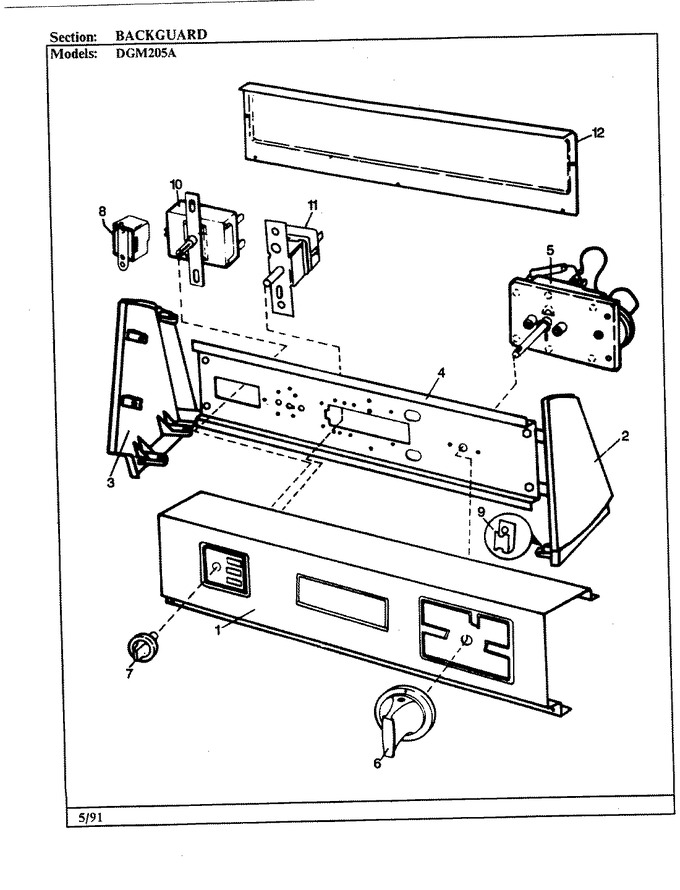

01 - Control Panel (rev. A-d)(alm)


02 - Cylinder & Drive (alm)(rev. A-d)


03 - Exterior (rev. A-d)(alm)


04 - Gas Carrying (rev. A-d)(alm)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1876		Control Panel		Appelez-nous	-
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	25-7793		Screw		Appelez-nous	-
2	35-2487		Cap, End (rt)		Appelez-nous	-
3	35-2488		Cap, End (lt)		Appelez-nous	-
3	53-0278		Trim, End Cap (lt)		Appelez-nous	-
3	53-0277		Trim, End Cap (rt)		Appelez-nous	-
3	25-7760		Screw		Appelez-nous	-
4	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
4	53-1676		Shield, Control		Appelez-nous	-
5	53-1303CP		Timer   (Replaces: 53-1303)	A-B	Appelez-nous	-
5	63-5685		Timer Motor	A-B	Appelez-nous	-
5	53-1758		Timer	C	Appelez-nous	-
5	25-0205		Screw	A-B	Appelez-nous	-
5	WP33002917		Screw   (Replaces: 25-7435)	C		Immediately	$ 6.90
6	53-1530		Timer Knob & Skirt Assy		Appelez-nous	-
7	35-2186		Knob, Selector		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	53-1666		Buzzer - Adjustable		Appelez-nous	-
9	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
10	53-1265		Rotary Switch		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
11	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
11	53-0346		Switch, Wrinkle Out		Appelez-nous	-
12	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
12	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
12	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
12	25-7697		Screw		Appelez-nous	-
12	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
12	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
12	53-1829		Manual, Use & Care		Appelez-nous	-
12	34-9487		Plate, Reinforcement		Appelez-nous	-
12	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
