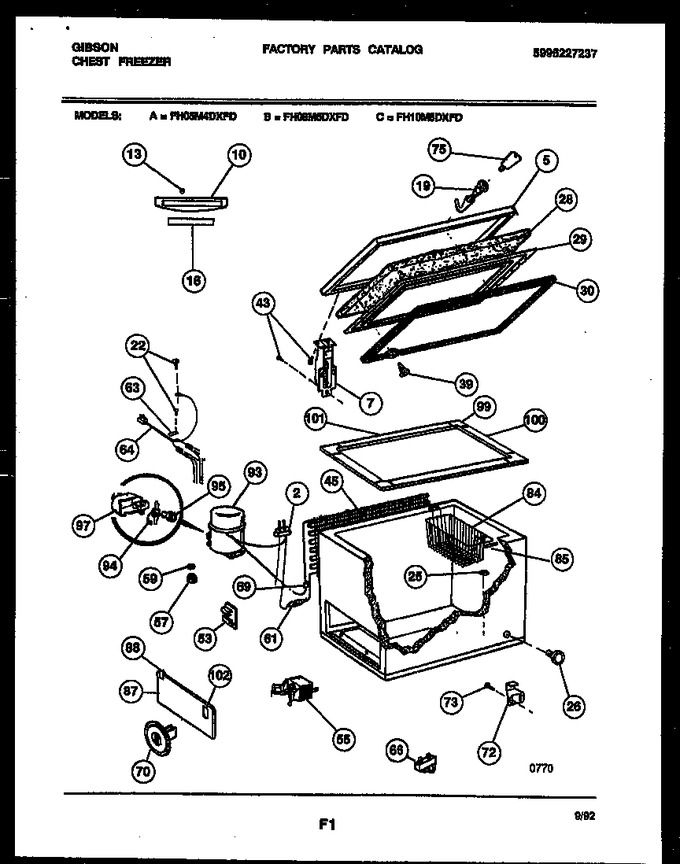

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 06599967 | Grommet |
|
- | |||||
| 5 | 5303209997 | Lid-brown |
|
- | |||||
| 7 | 5303925120 | Hinge-almond |
|
$ 59.12 | |||||
| 10 | 5309948646 | Handle |
|
- | |||||
| 13 | 5309948647 | Fastener, Handle |
|
- | |||||
| 16 | 5303270969 | Insert-handle |
|
- | |||||
| 19 | 5303284902 | Lock Complete |
|
- | |||||
| 22 | 08037851 | Screw |
|
$ 3.57 | |||||
| 25 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 26 | 5306599932 | Plug Drain Shell |
|
- | |||||
| 28 | 5303207456 | Insulation |
|
- | |||||
| 29 | 5303281364 | Panel Inner-almd |
|
- | |||||
| 30 | 5300301163 | Gasket-almd |
|
- | |||||
| 39 | 5303091422 | Clip |
|
- | |||||
| 43 | 5309950602 | Screw |
|
$ 5.30 | |||||
| 45 | 5300120781 | Condenser (not Original Equipment-service Replacement On |
|
- | |||||
| 53 | 06599553 | Clip, Wires |
|
- | |||||
| 55 | 5308013601 | Control Cold |
|
- | |||||
| 57 | 5308008778 | Grommet (4) |
|
- | |||||
| 59 | 216056400 | Clip (3) |
|
- | |||||
| 61 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 63 | 5303017718 | Clamp Wires To Rail |
|
- | |||||
| 64 | 5303288155 | Harness |
|
- | |||||
| 66 | 216134900 | Capacitor Run |
|
- | |||||
| 69 | 5305878546 | Spacer Condenser |
|
$ 7.23 | |||||
| 70 | 5303208881 | Knob Control |
|
- | |||||
| 72 | 5303200693 | Latch |
|
- | |||||
| 73 | 5303161233 | Screw Latch |
|
- | |||||
| 75 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 84 | 5303018277 | Basket |
|
- | |||||
| 85 | 5303286650 | Guard-handle |
|
- | |||||
| 87 | 5303206882 | Panel Access |
|
- | |||||
| 88 | 08017037 | Retainer (4) |
|
$ 3.26 | |||||
| 93 | 5300186041 | Compressor W/ Electricals |
|
- | |||||
| 94 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 95 | 5303206885 | Overload |
|
$ 119.23 | |||||
| 97 | 5303206815 | Cover Terminal |
|
- | |||||
| 99 | 5303018270 | Breaker-corner |
|
- | |||||
| 100 | 5303018273 | Breaker-end |
|
- | |||||
| 101 | 3018755 | Breaker-front & Rear |
|
- | |||||
| 102 | 5303208663 | Indicator Plug |
|
- | |||||
| 63A | 5303208622 | Clip Grounding (non-illustrated) |
|
- |
