Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11117769 Leg, Leveling   (Replaces: 63-5834) In-Stock Immediately $ 16.61

2 53-0120 Clip, Front Panel Special Order $ 11.32

3 16515 Clip, Wiring   (Replaces: 25-7027) Special Order $ 17.60

4 WP90767 Screw   (Replaces: 25-7741) In-Stock Immediately $ 7.04

4 53-0153 Shield, Wiring Appelez-nous -
5 Y02100001 Bulkhead Appelez-nous -
5 WP681414 Screw   (Replaces: 25-7733) In-Stock Immediately $ 7.07

6 WP31001747 Seal   (Replaces: 53-0218) Special Order $ 30.87

7 53-1248 Cylinder, White Appelez-nous -
8 WP3196164 Screw   (Replaces: 25-7759) In-Stock Immediately $ 7.82

8 Y02100002 Baffle (wht) Appelez-nous -
9 LA-1004 Motor Mtg. Kit (dryer) Appelez-nous -
9 341241 Belt, Cylinder   (Replaces: 53-1589) In-Stock Immediately $ 16.34

10 53-0189 Motor/pully Asm Appelez-nous -
11 53-0693 Switch, Motor Appelez-nous -
12 25-7811 Screw Appelez-nous -
12 53-0105 Bracket Appelez-nous -
13 WP660658 Clamp, Motor   (Replaces: 53-0214) Special Order $ 7.05

14 53-0199 Idler Arm Appelez-nous -
15 53-0207 Idler Spring Appelez-nous -
16 53-0134 Duct, Exhaust Appelez-nous -
17 53-0774 Blower Housing Appelez-nous -
18 12001324 Seal, Blower Housing   (Replaces: 53-0203) Special Order $ 187.37

19 53-0106 Blower Wheel Special Order $ 58.02

20 WP312967 Clamp   (Replaces: 25-7823) In-Stock Immediately $ 10.68

21 25-7812 Retaining Ring Appelez-nous -
22 53-1026 Guide, Vane Inlet Appelez-nous -
22 WP33002917 Screw   (Replaces: 25-7807) In-Stock Immediately $ 6.90

22 53-1024 Blower Cover Appelez-nous -
22 WP90767 Screw   (Replaces: 25-2134) In-Stock Immediately $ 7.04

23 WP53-1107 Thermostat, Control (146/121)   (Replaces: 53-1107) Special Order $ 81.25

24 53-0262 Thermostat Appelez-nous -
24 WP90767 Screw   (Replaces: 25-2134) In-Stock Immediately $ 7.04

25 53-0152 Lamp Socket Appelez-nous -
26 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

26 53-0177 Bulb, Light Appelez-nous -
27 53-0174 Lens, Bulb Appelez-nous -
28 WP3195558 Clip, Push-on   (Replaces: 25-3562) Special Order $ 7.68

28 LA-1006 Glide Kit, Tumbler In-Stock Immediately $ 25.12

29 WP31001356 Rh Gld Cushion   (Replaces: 53-0182) Special Order $ 76.16

30 12002126 Front Roller Kit   (Replaces: LA-1007) Special Order $ 127.91

30 WP31001469 Rh Cyl Glide   (Replaces: 53-0183) Special Order $ 66.66

31 WP3351614 Screw   (Replaces: 25-7101) In-Stock Immediately $ 6.26

31 53-0198 Support Asm Appelez-nous -
32 12002126 Front Roller   (Replaces: 53-0665) Special Order $ 127.91

33 25-7813 Spacer Appelez-nous -
34 25-7814 Washer Special Order $ 5.33

35 WP25-7854 Retaining Ring   (Replaces: 25-7574) Special Order $ 10.68

36 WP31001356 Lh Gld Cushion   (Replaces: 53-0184) Special Order $ 76.16

37 LA-1008 Rr Roller Kit Special Order $ 66.73

37 WP31001470 Lh Cyl Glide   (Replaces: 53-0185) Special Order $ 67.36

38 WP53-0197 Support Assy.-cylinder Rear   (Replaces: 53-0197) Special Order $ 81.21

38 WP3351614 Screw   (Replaces: 25-7101) In-Stock Immediately $ 6.26

39 53-0163 Cylinder Roller Appelez-nous -
40 25-7813 Spacer Appelez-nous -
41 25-7814 Washer Special Order $ 5.33

42 WP25-7854 Retaining Ring   (Replaces: 25-7574) Special Order $ 10.68

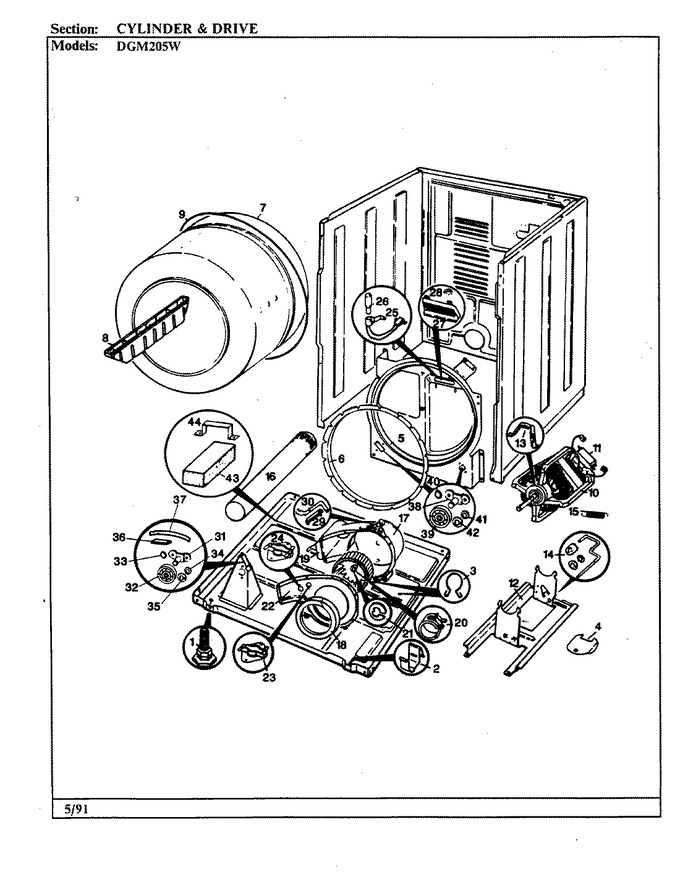

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for DGM205W
