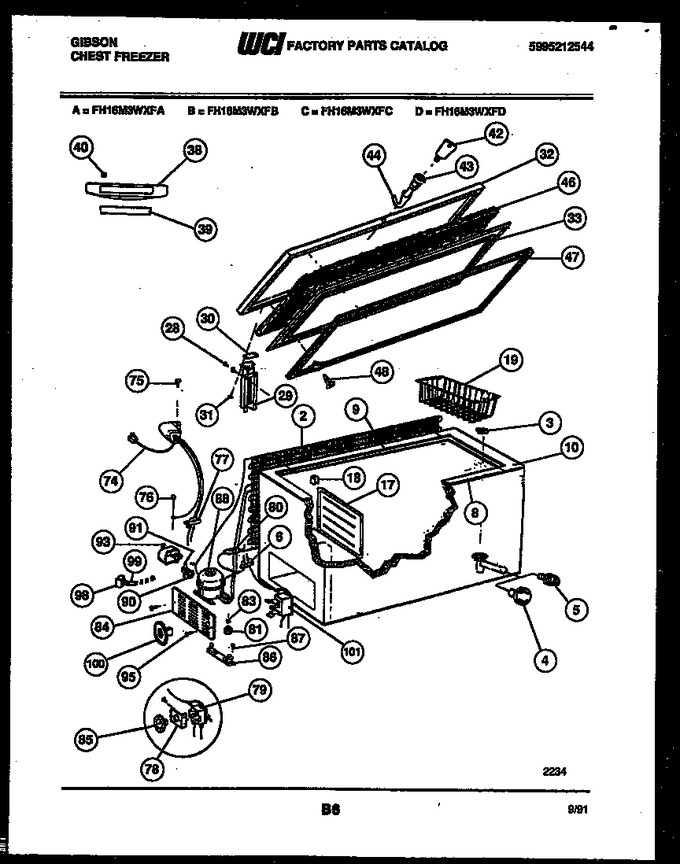

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | External Condenser (not Original Equipment-service Repla |
|
$ 640.71 | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 06599967 | Grommet |
|
- | |||||
| 7 | 5303207301 | Breaker Ends |
|
- | |||||
| 8 | 5303925045 | Breaker Front |
|
- | |||||
| 9 | 5303925045 | Breaker Rear |
|
- | |||||
| 10 | 5303207302 | Breaker Corner |
|
- | |||||
| 17 | F129066 | Divider Drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider (4) |
|
$ 19.80 | |||||
| 19 | 5303204811 | Basket |
|
- | |||||
| 28 | 5303091426 | Screw Hinge Base (8) |
|
- | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 5308037852 | Spacer Hinge Wing (2) |
|
- | |||||
| 31 | 5309950602 | Screw Hinge Wing (8) |
|
$ 5.30 | |||||
| 32 | 5303207510 | Lid Exterior |
|
- | |||||
| 33 | 5303210002 | Panel Inner Lid-white |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | 5303209993 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener-handle (2) |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5300190358 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 08016778 | Insulation-lid |
|
- | |||||
| 47 | 3017645 | Gasket Lid |
|
- | |||||
| 48 | 5303091422 | Clip Panel |
|
- | |||||
| 74 | 08017013 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 78 | 5308016760 | Bracket-control |
|
- | |||||
| 79 | 5308037987 | Cold Control |
|
- | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor |
|
- | |||||
| 83 | 5309950343 | Clip Compressor (4) |
|
- | |||||
| 84 | 5308017004 | Access Panel |
|
- | |||||
| 85 | 5303091432 | Knob Control |
|
- | |||||
| 86 | 08016764 | Support Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916007 | Compressor W/ Electricals |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5308037789 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5303916391 | Capacitor-run |
|
- | |||||
| 99 | 5303091425 | Harness Capacitor |
|
- | |||||
| 44A | 5303208488 | Latch Catch (non-illustrated) |
|
- | |||||
| 44B | 5303208481 | Support Latch (non-illustrated) |
|
- | |||||
| 95A | 08016777 | Power Cord Retainer (non-illustrated) |
|
- |
