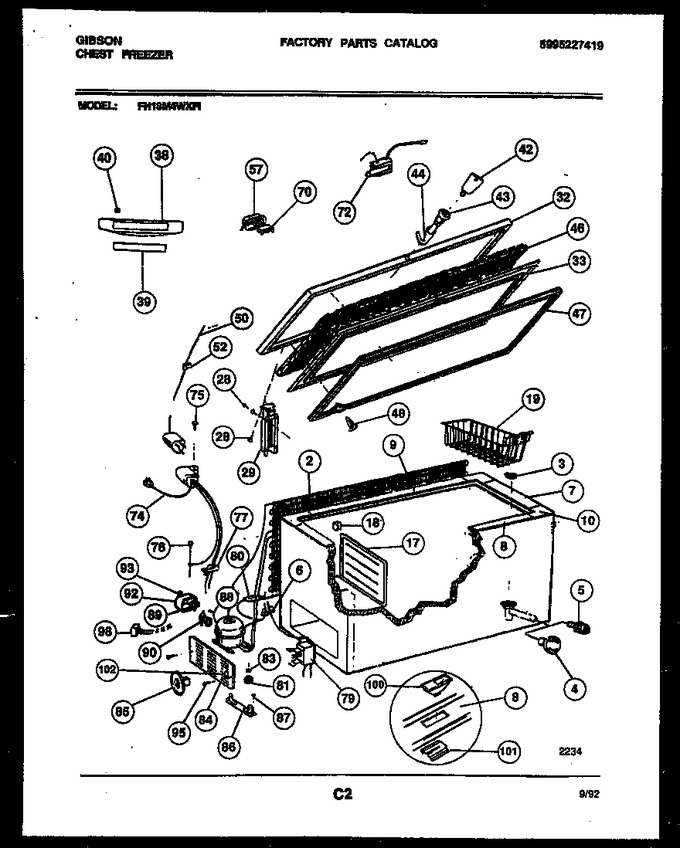

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303280307 | Condenser (not Original Equipment-service Replacement Pa |
|
$ 640.71 | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet |
|
- | |||||
| 7 | 5303207301 | Breaker Ends |
|
- | |||||
| 8 | 5303925036 | Breaker Front |
|
- | |||||
| 9 | 5303925036 | Breaker Rear |
|
- | |||||
| 10 | 5303207302 | Breaker Corner |
|
- | |||||
| 17 | 216034600 | Divider-drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider |
|
$ 19.80 | |||||
| 19 | 5303204811 | Basket |
|
- | |||||
| 28 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 32 | 5303210021 | Lid Exterior |
|
- | |||||
| 33 | 216033301 | Panel Inner-white |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | 5303209993 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 5303291813 | Gasket Lid |
|
- | |||||
| 48 | 5303091422 | Clip Panel (42) |
|
- | |||||
| 50 | 5303270970 | Wire Harness Lid |
|
- | |||||
| 51 | 216858001 | Screw-ground Wire (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 52 | 08016762 | Retainer (2) |
|
- | |||||
| 57 | 5308037857 | Cap Sealing |
|
- | |||||
| 70 | 5303017178 | Switch |
|
- | |||||
| 72 | 5303208483 | Buzzer |
|
- | |||||
| 74 | 5303285061 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip (2) |
|
- | |||||
| 79 | 5303212641 | Control Temp |
|
- | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet (4) |
|
- | |||||
| 83 | 216056400 | Clip (4) |
|
- | |||||
| 84 | 216022700 | Panel Access |
|
- | |||||
| 85 | 216034500 | Knob |
|
- | |||||
| 86 | 5303212615 | Support, Compressor (2) |
|
- | |||||
| 87 | 08016776 | Screw-support (2) |
|
- | |||||
| 88 | 5303916022 | Compressor W/ Electricals |
|
- | |||||
| 89 | 5303007173 | Relay |
|
$ 207.43 | |||||
| 90 | 5303212643 | Overload |
|
- | |||||
| 92 | 5303280310 | Cover Terminal |
|
- | |||||
| 93 | 5303271428 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 216134900 | Capacitor Run |
|
- | |||||
| 100 | 5303208488 | Latch |
|
- | |||||
| 101 | 5303208481 | Support Latch |
|
- | |||||
| 102 | 5303208663 | Plug Control |
|
- | |||||
| 98A | 08016777 | Retainer Power Cord (not Original Equipment, Customer Purchase Only.) (non-illustrated) |
|
- |
