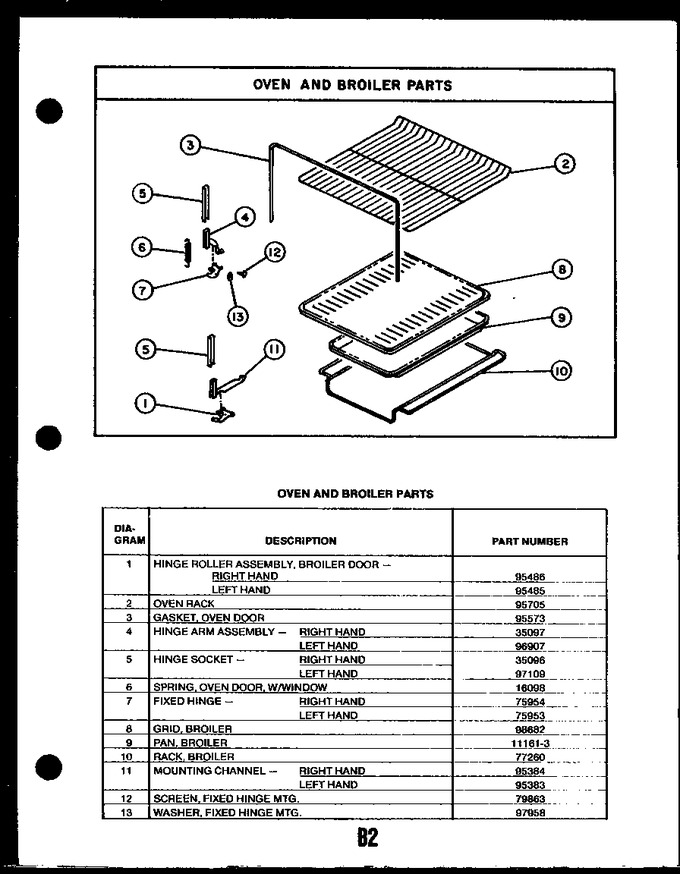

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0095485 | Hinge Roller Assy L H Br Dr |
|
- | |||||
| 1 | 0095486 | Use 0060915 |
|
- | |||||
| 2 | 0095705 | Rack, Oven |
|
- | |||||
| 3 | Y0095573 | Gasket, Oven Door |
|
- | |||||
| 4 | Y35097 | Brace, Frt Pnl |
|
- | |||||
| 4 | 0096907 | Sub 312098, Kit, Hinge, Lh |
|
- | |||||
| 5 | 35096 | Hinge Socket - Right Hand |
|
- | |||||
| 5 | Y0097109 | Socket Hinge L H |
|
- | |||||
| 6 | 16098 | Spring, Oven Door, W/window |
|
- | |||||
| 7 | 75954 | Fixed Hinge - Right Hand |
|
- | |||||
| 7 | 75953 | Fixed Hinge - Left Hand |
|
- | |||||
| 8 | 4396923 | Broiler Grid (Replaces: Y0098682) |
|
Immediately | $ 52.04 | ||||
| 9 | 11161-3 | Sub 11161cg, Broiler Pan |
|
- | |||||
| 10 | 77260 | Rack, Broiler |
|
- | |||||
| 11 | 0095384 | Mount Channel Ass`y Br Dr R H |
|
- | |||||
| 11 | 0095383 | X Mtg Channel Assy Broiler Dr |
|
- | |||||
| 12 | 79863 | Screen, Fixed Hinge Mtg. |
|
- | |||||
| 13 | Y0097958 | Washer |
|
- |
