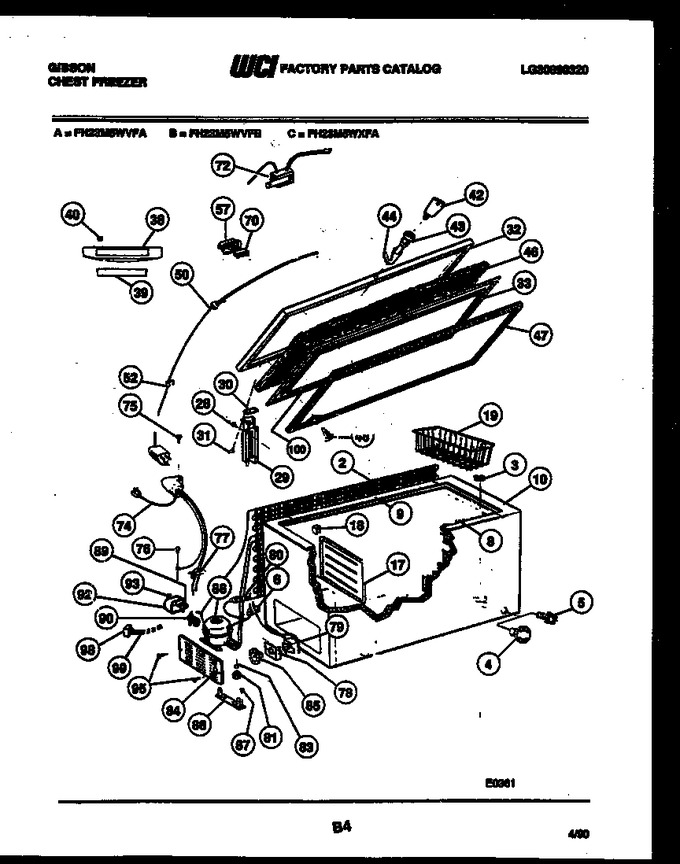

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300300173 | Condenser (not Original Equipment. Service Replacement |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet-control Tube |
|
- | |||||
| 7 | 08017009 | Breaker End |
|
- | |||||
| 8 | 3925027 | Breaker Front |
|
- | |||||
| 9 | 3925027 | Breaker Rear |
|
- | |||||
| 17 | 5308016784 | Divider-drain Pan |
|
- | |||||
| 18 | 5306594584 | Support Divider |
|
$ 19.80 | |||||
| 19 | 5303204811 | Basket (2) |
|
- | |||||
| 28 | 5303091426 | Screw Hinge Base (8) |
|
- | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 08037853 | Spacer-hinge Wing |
|
- | |||||
| 31 | 5309950602 | Screw-hinge Wing |
|
$ 5.30 | |||||
| 32 | 3200700 | Lid Exterior |
|
- | |||||
| 33 | F129135 | Panel Inner (almd) |
|
- | |||||
| 38 | 5309950054 | Handle |
|
- | |||||
| 39 | 530300245 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener-handle (2) |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5300190358 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | F128167 | Gasket Lid |
|
- | |||||
| 48 | 5303091422 | Clip Panel (50) |
|
- | |||||
| 50 | 3200696 | Wire Harness Lid |
|
- | |||||
| 51 | 216858001 | Screw-ground Wire (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 52 | 09950610 | Clip |
|
- | |||||
| 57 | 5308037857 | Sealing Cap |
|
- | |||||
| 70 | 5303017178 | Switch |
|
- | |||||
| 72 | 3200697 | Buzzer |
|
- | |||||
| 74 | 3200699 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip (2) |
|
- | |||||
| 78 | 5308016760 | Bracket |
|
- | |||||
| 79 | 5303017689 | Cold Control |
|
- | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet (4) |
|
- | |||||
| 83 | 5309950343 | Clip (4) |
|
- | |||||
| 84 | 5308017004 | Access Panel |
|
- | |||||
| 85 | 5303091432 | Knob |
|
- | |||||
| 86 | 08016764 | Support (2) |
|
- | |||||
| 87 | 08016776 | Screw |
|
- | |||||
| 88 | 5303916020 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5308037789 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 99 | 5303091425 | Harness Capacitor |
|
- | |||||
| 44A | 5303208488 | Latch Catch (non-illustrated) |
|
- | |||||
| 44B | 5303208481 | Support Latch (non-illustrated) |
|
- |
