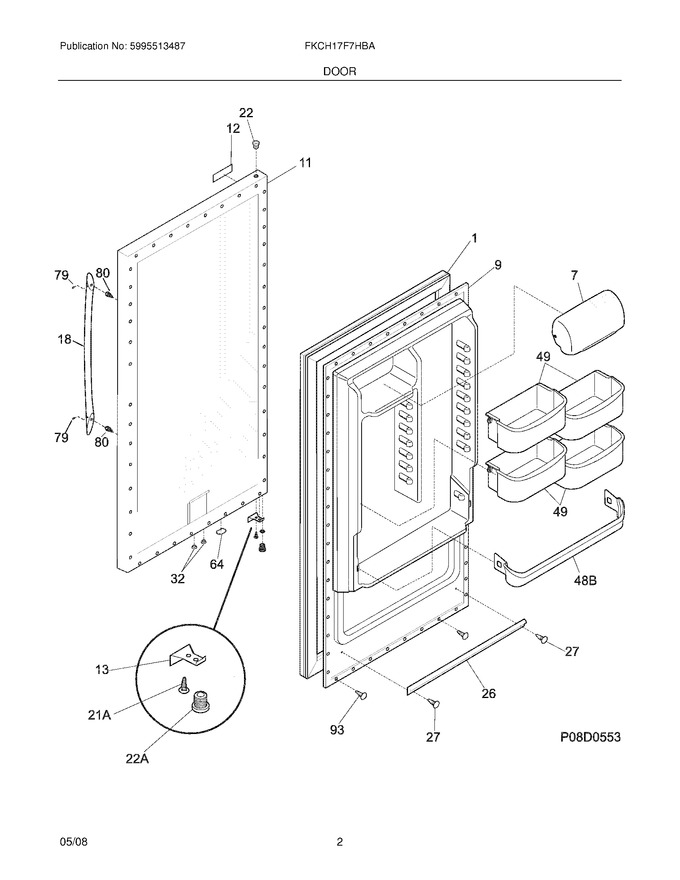

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507206 | Gasket-door,black (Replaces: 216522311) |
|
Immediately | $ 186.74 | ||||
| 7 | 240338313 | Door,dairy ,clear |
|
Immediately | $ 80.80 | ||||
| 9 | 216953600 | Panel-inner Door,refr |
|
$ 203.41 | |||||
| 11 | 297245204 | Panel-outer Door,black |
|
$ 176.93 | |||||
| 12 | 241808601 | Label-nameplate |
|
$ 12.69 | |||||
| 13 | 297148401 | Door Stop |
|
$ 6.92 | |||||
| 18 | 297233801 | Handle-door,black |
|
$ 82.32 | |||||
| 22 | 216970802 | Bearing,hinge W/o`ring ,top (Replaces: 216970800) |
|
Immediately | $ 10.85 | ||||
| 26 | 216524201 | Gasket,secondary (Replaces: 216524200) |
|
$ 49.62 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 49 | 216959802 | Bin-door,2-liter ,(4) (Replaces: 216959800) |
|
Immediately | $ 83.49 | ||||
| 64 | 216403700 | Plug-button,hole Filler ,door Base |
|
$ 58.12 | |||||
| 79 | 218755404 | Screw-set,10-32 X 1.100 |
|
- | |||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 14.46 | |||||
| 22A | 297006800 | Bearing-hinge,btm, W/o`ring |
|
$ 12.29 | |||||
| 48B | 240338001 | Bin-door,pseudo ,gallon ,refr |
|
Immediately | $ 34.96 | ||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 240537301 | Nut-anchor,door Hdl Screw |
|
$ 11.34 | |||||
| NI | 297048000 | Screw,anchor ,no.8 ,white |
|
$ 12.05 | |||||
| NI | 297175300 | Wrench,allen |
|
$ 15.49 |
