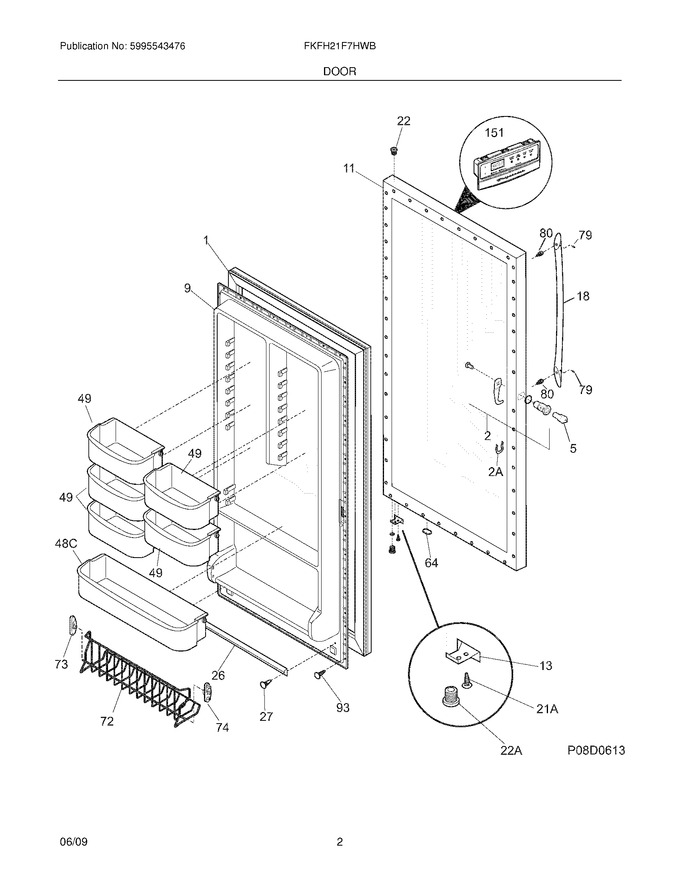

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522312)			Immediately	$ 159.60
5	297147700		Key,lock			Immediately	$ 7.57
9	297185900		Panel-inner Door,frzr				$ 193.49
11	297316702		Panel-outer Door,white				$ 320.27
13	297257000		Door Stop,chrome ,rh				$ 16.63
18	297422020		Handle-door,white   (Replaces: 297233800)				$ 99.77
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 10.85
26	216524201		Gasket,secondary				$ 49.62
27	5304472186		Clip,panel Mtg				$ 11.57
49	A00299203		Bin-door,2-liter   (Replaces: 297187200)				$ 80.33
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
72	297186700		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 48.86
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 48.05
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
21A	297197500		Screw,door Stop Mtg ,fh38-16x.750 ,p Twin				$ 14.46
22A	297006800		Bearing-hinge,btm, W/o`ring				$ 12.29
2A	297213300		Clip,spring				$ 10.17
48C	5304510193		Bin-door,gallon   (Replaces: 297225600)				$ 73.57
F151	297235200		Control-electronic,assy ,white ,115v   (Replaces: 297241900)			Immediately	$ 338.99
F2	297318600		Lock Assy   (Replaces: 297213400)				$ 36.87
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
NI	240537301		Nut-anchor,door Hdl Screw				$ 11.34
