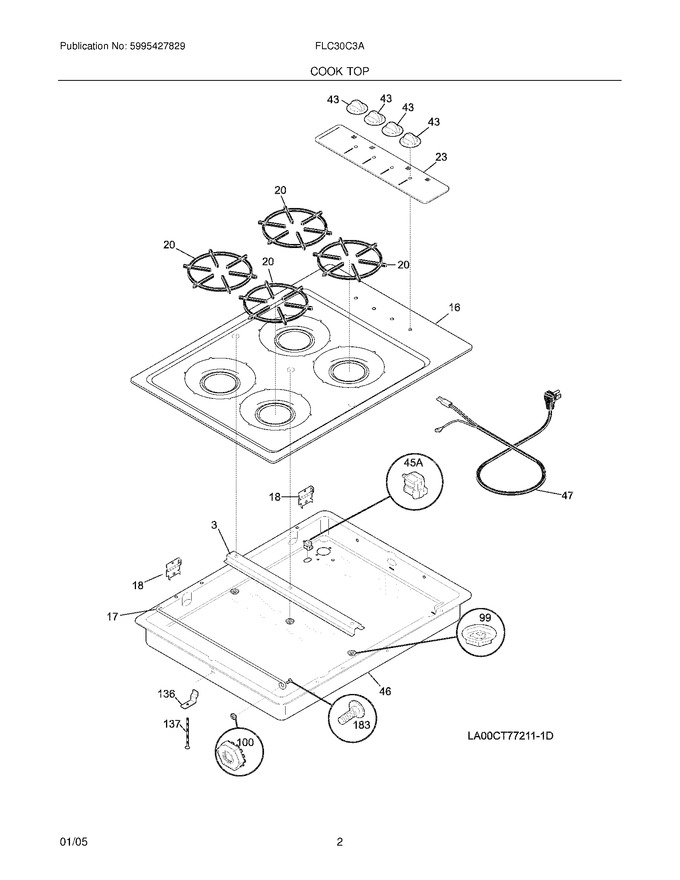

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303305547		Channel,top Stiffener		Appelez-nous	-
16	318159117		Panel,main Top ,bisque		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
20	316040807		Grate,black ,(4)		Appelez-nous	-
23	318242305		Panel,control ,black		Appelez-nous	-
43	318196143		Knob,control ,black		Appelez-nous	-
46	318077411		Burner Box		Appelez-nous	-
47	318144002		Cord,service		Appelez-nous	-
99	5303324192		Self Nut				$ 5.46
100	5303325982		Nut,keps ,10-32		Appelez-nous	-
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
183	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
45A	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
