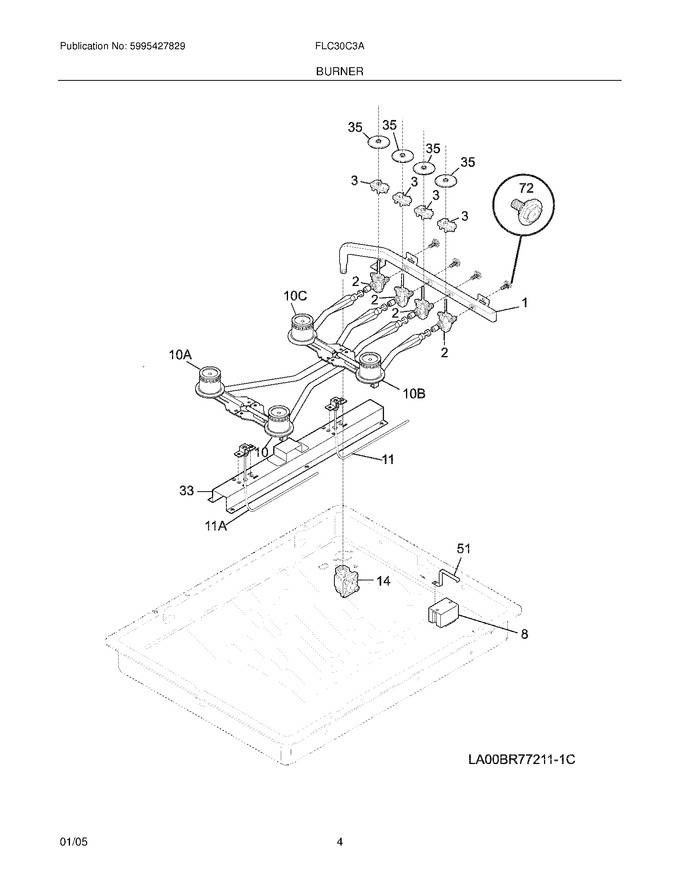

05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177001		Manifold Pipe		Appelez-nous	-
33	318257400		Bracket,support		Appelez-nous	-
35	318146300		Bushing		Appelez-nous	-
72	5303323141		Screw,valve Mtg ,1/4-20 X 5/16		Appelez-nous	-
F10	3201432		Burner - Top (lf)		Appelez-nous	-
F10A	3201433		Burner - Top (lr)		Appelez-nous	-
F10B	3201434		Burner - Top (rf)		Appelez-nous	-
F10C	3201435		Burner - Top (rr)		Appelez-nous	-
F11	318148602		Ignitor,top Burner		Appelez-nous	-
F11A	318148603		Ignitor,top Burner		Appelez-nous	-
F14	5303271248		Regulator-pressure, Lp		Appelez-nous	-
F2	318087011		Valve-top Burner		Appelez-nous	-
F3	318232604		Wiring Harness,w/igntr Switch				$ 292.73
F8	5304518635		Module,spark   (Replaces: 316135700)				$ 87.21
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	318024201		Bracket,spark Module				$ 9.08
NI	08011955		Screw,10-24 X 0.375 ,square Drive			Immediately	$ 9.36
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
