SELECT A DIAGRAM

01 - Cover


02 - Upper Cabinet/drum/heater


04 - Motor/blower/belt

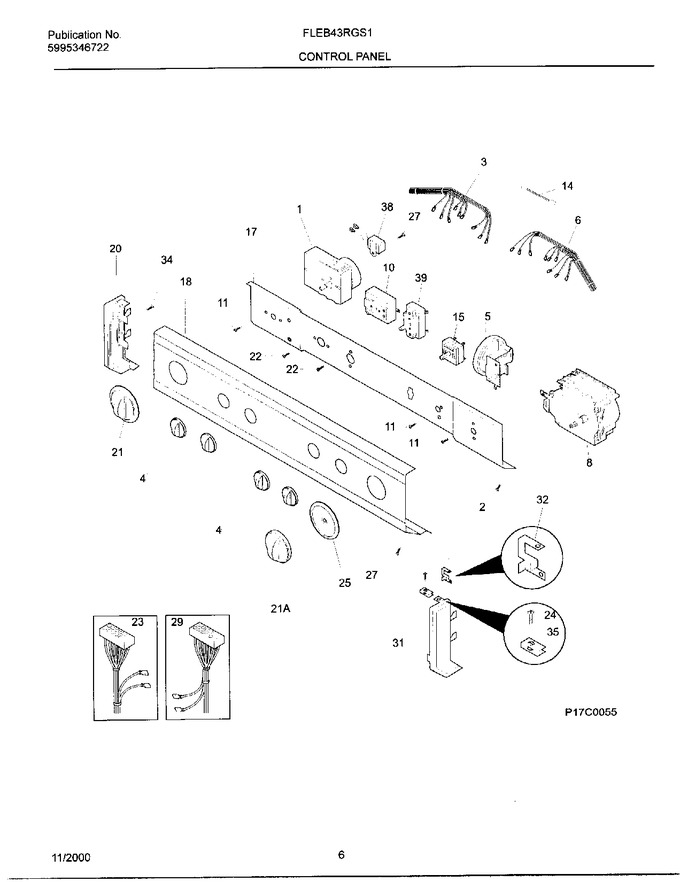

06 - Control Panel


08 - Lower Cabinet/top


10 - Motor/tub


12 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131946400		Harn-cont-lcd Wj Elec Tts		Appelez-nous	-
4	131858004		Knob-rotary,white   (Replaces: 5303319288)			Immediately	$ 55.29
5	131827400		Switch-pressure		Appelez-nous	-
6	131987800		Lcw Control Harness W/temp Sw		Appelez-nous	-
8	131758600		Timer-washer			Immediately	$ 352.01
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
17	131975600		Brkt-cont Mtg Weld-turn/start		Appelez-nous	-
18	131933400		Trimplate Fdl/g8wjsj		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131859104		Knob-timer,white ,dryer   (Replaces: 5303319290)			Immediately	$ 60.72
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976702		Pointer-wht/drk Gray Ind-lc M1				$ 44.89
27	131892100		Scr 6-20x.230 Pph B Pt		Appelez-nous	-
29	131778800		Harn-lwr Wshr		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
39	131753000		Switch-dryer Temp 4 Pos Rot		Appelez-nous	-
21A	131977001		Knob-wht-lc Wsh Timer M1				$ 31.69
F1	5303297177		Timer - Dryer				$ 229.64
F10	134399700		Switch-start   (Replaces: 131447500)			Immediately	$ 83.77
F15	131620800		Switch-temperature		Appelez-nous	-
NI	5304464772		Strap   (Replaces: 5303161300)				$ 10.63

    View Diagram in Separate Window       Print Part List
