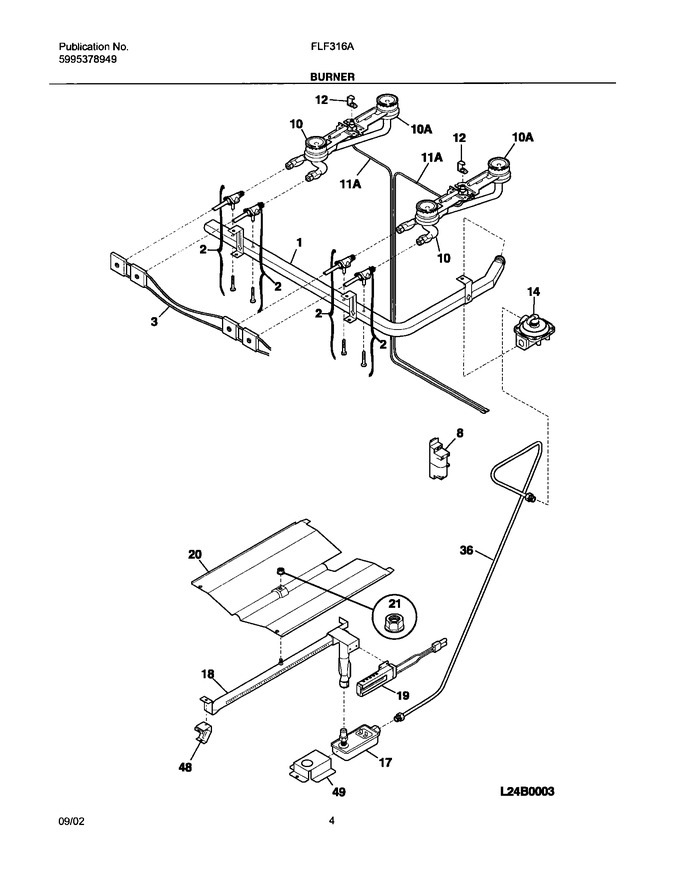

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316001830		Wiring Harness,w/igntr Switch				$ 230.12
12	3016993		Retainer-ignitor		Appelez-nous	-
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	316065004		Tubing,3/8 ,alum				$ 91.51
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
F1	316134400		Pipe,manifold		Appelez-nous	-
F10	5304506427		Burner,top ,front ,venturi Ring   (Replaces: 316103800)				$ 101.63
F10A	5304506426		Burner,top ,rear ,venturi Ring   (Replaces: 316103801)				$ 100.05
F11A	316081705		Ignitor,top Burner ,50``				$ 94.27
F14	316091704		Regulator,pressure ,green ,lp Gas		Appelez-nous	-
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5303935066		Ignitor,oven Kit ,w/nut & Instr			Immediately	$ 59.58
F2	5303935190		Valve,top Burner ,2 Position ,w/ Mtg Screw		Appelez-nous	-
F8	5304518635		Module,spark   (Replaces: 316135700)				$ 87.21
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79

    View Diagram in Separate Window       Print Part List
