SELECT A DIAGRAM

01 - Cover

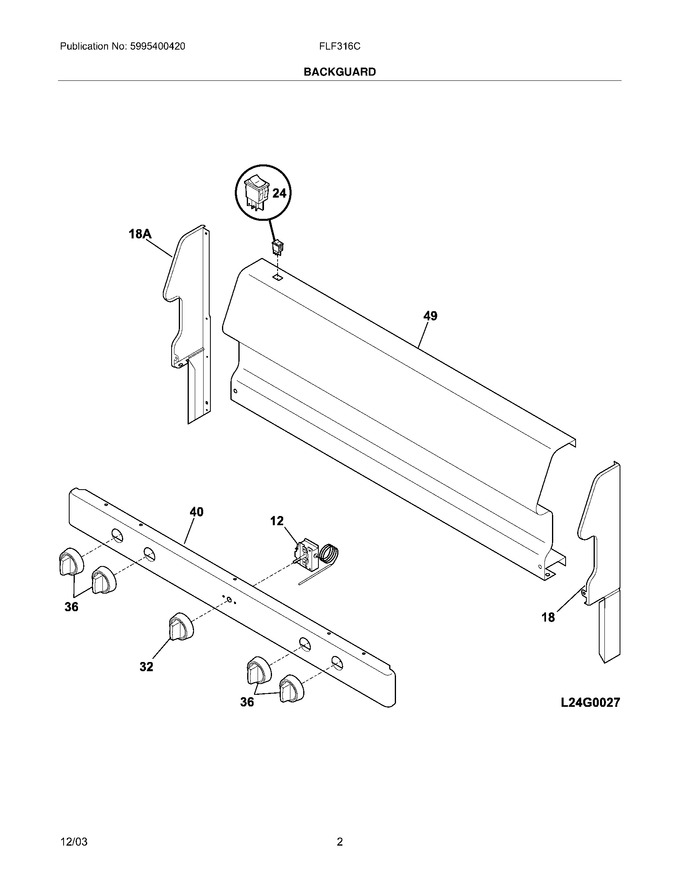

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	316263406		End Cap,bisque ,rh		Appelez-nous	-
19	316263302		Panel,backguard ,bisque		Appelez-nous	-
32	316102329		Knob,thermostat ,bisque		Appelez-nous	-
36	316102323		Knob,top Valve ,bisque ,(4)		Appelez-nous	-
40	316201813		Panel,manifold ,bisque		Appelez-nous	-
18A	316263407		End Cap,bisque ,lh		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F24	316118104		Switch,oven Light ,bisque ,rocker		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316097602		Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
