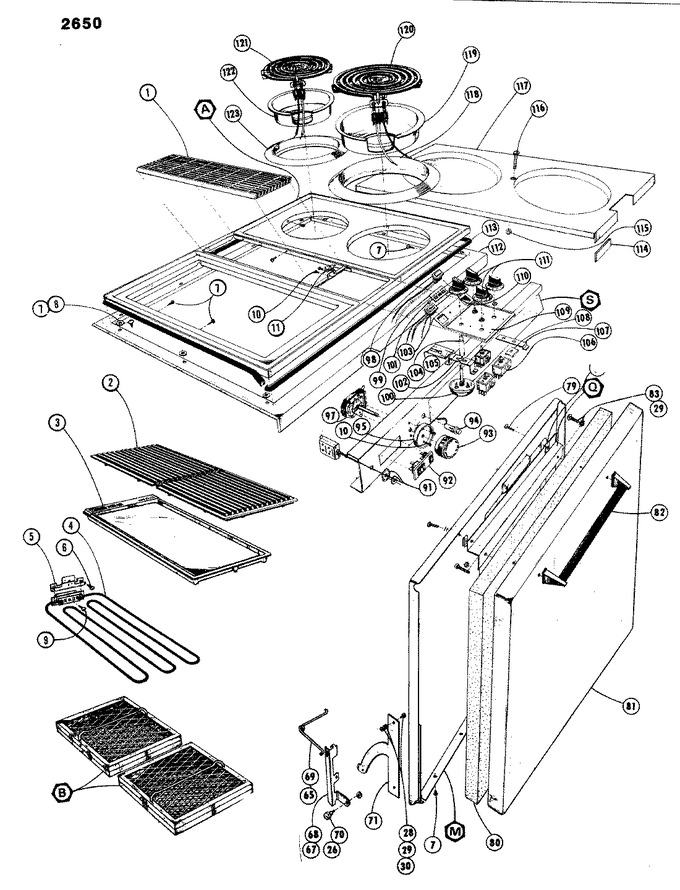

Diagram for 01 - Range/grill/oven Parts List
01 - Range/grill/oven Parts List


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 786710 Air Grill Appelez-nous -
2 707886 Grate Appelez-nous -
3 Y707708 Griddle Appelez-nous -
4 Y707709 Element, Grill (240v) Appelez-nous -
4 Y707923 Grill Element 208v Appelez-nous -
5 707802 Detent Spring Appelez-nous -
6 707919 Screw Appelez-nous -
7 W11233072 Screw   (Replaces: Y707347) In-Stock Immediately $ 12.62

8 705336 Panel, Control (rt) Appelez-nous -
9 WP71001171 Screw   (Replaces: Y707745) Special Order $ 6.26

10 Y707150 Screw Appelez-nous -
11 707683 Nut Appelez-nous -
12 708249 Back Support Appelez-nous -
13 707349 Screw Appelez-nous -
14 708313 Tinnerman Appelez-nous -
15 708263 Cover, Exhauster Appelez-nous -
16 708264 Burner Box Insulator Appelez-nous -
17 707867 Insulator Appelez-nous -
18 Y707695 Bushing Appelez-nous -
19 Y707664 Washer Appelez-nous -
20 WP210720 Rivet   (Replaces: Y708088) Special Order $ 12.14

21 WP489128 Screw   (Replaces: Y707341) Special Order $ 9.79

22 707133 Ground Tag Appelez-nous -
23 708217 Spring Bracket Appelez-nous -
24 708228 Spring,broil Appelez-nous -
25 708266 Wire Cover Appelez-nous -
26 WPY707702 Locknut   (Replaces: Y707702) In-Stock Immediately $ 6.26

27 707329 Spacer, Nylon Appelez-nous -
28 707346 Screw Appelez-nous -
30 701053 Nut - Vent Cover Mounting Appelez-nous -
31 701761 Base Plate Appelez-nous -
32 702224 Cover, Handy Box Appelez-nous -
33 708062 Gasket Appelez-nous -
34 Y707395 Isolator Motor Appelez-nous -
35 Y707402 Screw Appelez-nous -
36 707161 Nut Appelez-nous -
37 Y707393 Band, Motor Appelez-nous -
38 WPY707985 Wheel, Blower   (Replaces: Y707985) In-Stock Immediately $ 145.55

39 707704K Motor   (Replaces: Y707704) In-Stock Immediately $ 352.01

40 707407 Screw Special Order $ 6.42

41 707767 Cap, Connector Appelez-nous -
42 Y707758 Conduit Appelez-nous -
43 708280 Strip, Foam Appelez-nous -
44 707346 Screw Appelez-nous -
45 707714 Air Grill Appelez-nous -
46 WP707929 Filter, Grease   (Replaces: 707929) In-Stock Immediately $ 44.51

47 708232 Grease Box Appelez-nous -
48 708204 Door Appelez-nous -
49 708238 Door Knob Appelez-nous -
50 WP7101P072-60 Screw 10-24--3/8   (Replaces: Y708311) Special Order $ 6.77

51 707911 Burner Box Insulation Appelez-nous -
52 708308 Instruction Label Appelez-nous -
53 708111 Cleaning Label Appelez-nous -
54 708277 Serial Plate Appelez-nous -
55 WPY707869 Jar, Drain   (Replaces: Y707869) Special Order $ 61.43

56 Y707870 Lid, Jar Appelez-nous -
57 707082 Grommet Appelez-nous -
58 708268 Closure Grommet Appelez-nous -
59 WPW10253196 Screw   (Replaces: Y707113) Special Order $ 3.76

60 707551 Catch, Door Appelez-nous -
61 708216 Hinge Guard Appelez-nous -
62 708222 Side Trim R.h. Appelez-nous -
63 708327 Side Trim L.h. Appelez-nous -
64 708328 Bottom Trim Appelez-nous -
65 708227 Lt Dr Spring Appelez-nous -
66 708328 Bottom Trim Appelez-nous -
67 708225 Bracket Lh Appelez-nous -
68 708226 Bracket Rh Appelez-nous -
69 708265 Spring Ov Dr Appelez-nous -
70 708271 Hinge Pan Appelez-nous -
71 708224 Oven Door Hinge Appelez-nous -
72 708278 Screw Appelez-nous -
73 708282 Screw No. 10-32 Appelez-nous -
74 708279 Hex Nut Appelez-nous -
75 8009 Bulb, Oven (40 Watt Brass)   (Replaces: Y707319) In-Stock Immediately $ 16.80

76 Y708236 Oven Light Receptacle Appelez-nous -
77 WP210720 Rivet, Jar Lid   (Replaces: Y707128) Special Order $ 12.14

78 708205 Spring Access Door Appelez-nous -
79 WP7101P126-60 Screw   (Replaces: Y708310) In-Stock Immediately $ 6.85

80 708252 Insulation, Oven Door Appelez-nous -
81 708206 Door Appelez-nous -
82 708207 Handle Appelez-nous -
83 W11164114 Screw 1   (Replaces: Y708312) Special Order $ 3.76

84 Y708267 Oven Element Appelez-nous -
84 770195 Elem 208v Appelez-nous -
85 707586 Seal, Oven Door Appelez-nous -
86 708250 Insulation, Oven Wrap Appelez-nous -
87 708253 Insulation Appelez-nous -
88 708272 Support,rack Appelez-nous -
89 708235 Rack Appelez-nous -
90 708234 Rack Oven Appelez-nous -
91 Y707932 Reset Breaker Appelez-nous -
92 708231 Outlet Appelez-nous -
93 708275 Therm Knob Appelez-nous -
94 708229 Pilot Light Appelez-nous -
95 708305 Trim, Knob T-stat Appelez-nous -
96 707116 Screw Appelez-nous -
97 Y708230 Thermostat Appelez-nous -
98 Y708286 Light,pilot Appelez-nous -
99 707686 Insert, Logo----na Appelez-nous -
100 770112 Timer Appelez-nous -
101 707138 Palnut Appelez-nous -
102 707731 Bracket Appelez-nous -
103 Y708285 Switch,fan(push) Appelez-nous -
104 708008 Collar,timer Appelez-nous -
105 707996 Insulator Appelez-nous -
106 Y707036 Switch, Infinite Appelez-nous -
107 707687 Spring, Escutcheon Appelez-nous -
108 WP3188425 Gasket, Switch   (Replaces: 707990) Special Order $ 82.61

109 708283 Sw Escut Appelez-nous -
110 Y707742 Knob,timer Appelez-nous -
111 WPY700854 Knob, Infinite Switch   (Replaces: Y707697) In-Stock Immediately $ 23.22

112 708221 Enclosure Appelez-nous -
113 707591 Seal, Top Appelez-nous -
114 707840 Spacer Appelez-nous -
115 707835 Nut Acorn Appelez-nous -
116 707833 Screw Appelez-nous -
117 Y707822 Insert, Burner Box Appelez-nous -
118 WPY707453 Adaptor, Ring   (Replaces: Y707453) In-Stock Immediately $ 85.57

119 707388 Pan, Drip (8``) Appelez-nous -
120 M21MD Burner Element 240v   (Replaces: 707728) In-Stock Immediately $ 44.96

120 Y708098 Element, Conv. 208v Appelez-nous -
121 Y707727 Burner (6``) Appelez-nous -
121 708097 Element, Conv. 208v Appelez-nous -
122 707386 Pan, Drip (6``) Appelez-nous -
123 WPY707454 Adaptor, Ring (6``)   (Replaces: Y707454) In-Stock Immediately $ 80.69

124 786718 Top Chrome Satin Appelez-nous -
125 786513 Basket, Char-rock Appelez-nous -
126 786672 Grill Pan Appelez-nous -
127 786708 Unit Wraparound Appelez-nous -
128 786715 Cover, Motor Access Appelez-nous -
129 786727 Electric Pigtail Assembly Appelez-nous -
130 Y786315 Scroll Appelez-nous -
131 786719 Inlet Flange Appelez-nous -
132 786720 Cover, Motor Appelez-nous -
133 786706 Plenum Appelez-nous -
134 786726 Access Door Appelez-nous -
135 786707 Panel Appelez-nous -
136 786709 Oven Liner Appelez-nous -
137 786705 Frt Closure Appelez-nous -
138 786716 Door Panel Bracket Appelez-nous -
139 786717 Burner Box Appelez-nous -
140 786704 Feature Panel Appelez-nous -
