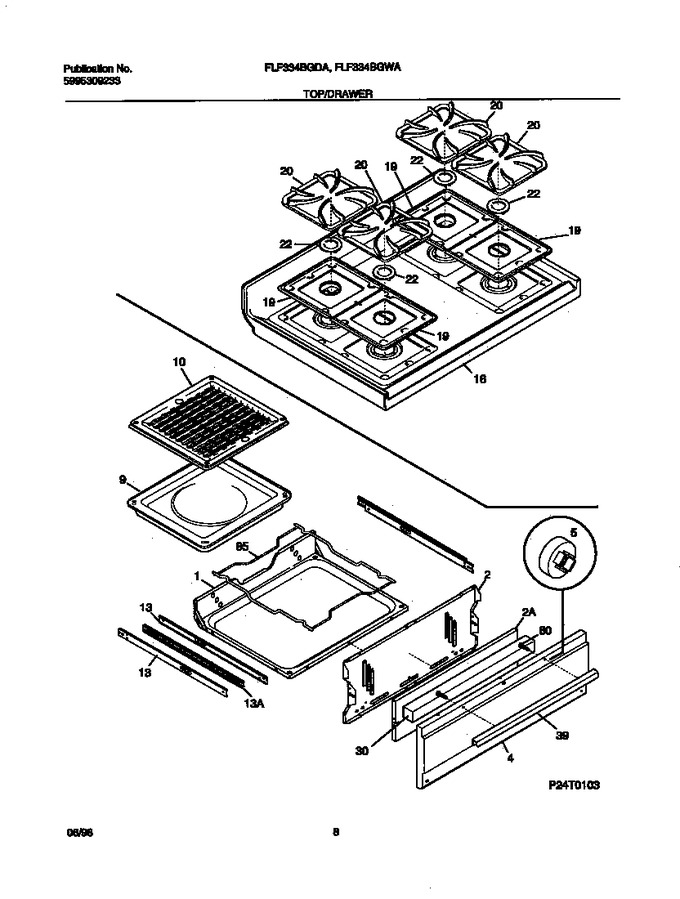

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110401		Carriage,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
2	316110800		Shield,broiler		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
16	5303301547		Main Top, Almond		Appelez-nous	-
19	316011401		Pan-burner (4)				$ 20.58
20	316085201		Grate, (4)		Appelez-nous	-
22	316098501		Cap-burner,black ,(2)		Appelez-nous	-
30	316059201		Bracket-main Top, Lh		Appelez-nous	-
39	316019508		Handle,drawer ,almond		Appelez-nous	-
60	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
85	316110500		Rack,warmer Drawer		Appelez-nous	-
*22941	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*22942	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*22943	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*22945	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*22946	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
30A	316059200		Bracket-main Top, Rh		Appelez-nous	-
30B	316111400		Insulation,broiler Drawer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
