SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer

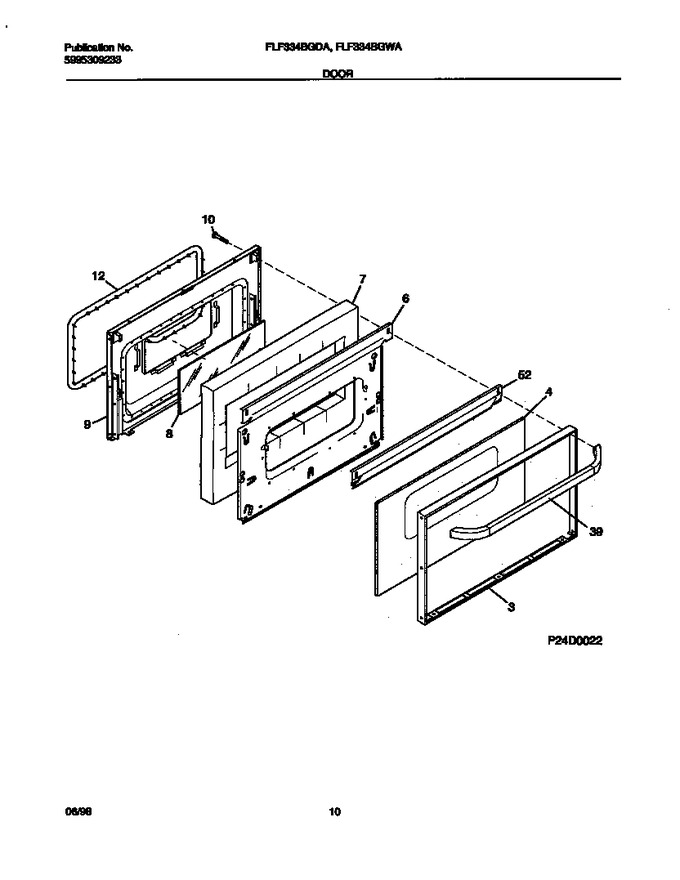

06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089000		Glass-oven Door,black ,outer		Appelez-nous	-
6	316088403		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316088600		Glass-oven Door, Airwash				$ 85.52
9	316066610		Liner-oven Door		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5304529996		Handle-door, Black, Oven   (Replaces: 316091114)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*22947	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*22948	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*22949	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*22950	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*22951	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*22952	316008401		Washer,3/4 X 1/4 ,steel ,(2)				$ 11.34
60A	5303015372		Cover-oven Front		Appelez-nous	-
60B	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96

    View Diagram in Separate Window       Print Part List
