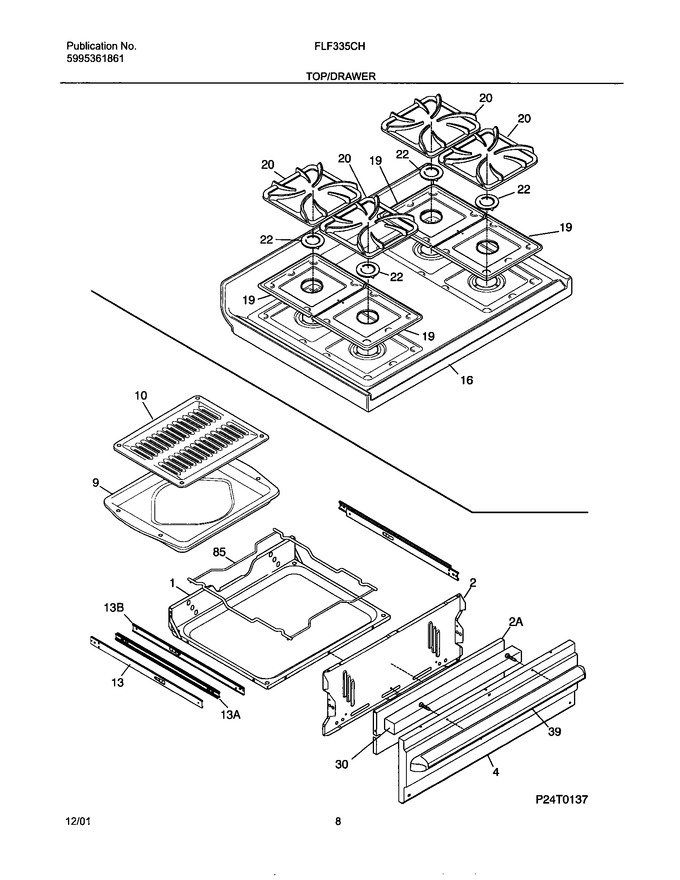

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056201		Panel-drawer,white		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316111502		Glide,low Broil ,chassis		Appelez-nous	-
16	5303301546		Panel-main Top,white		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316026106		Handle-drawer,white		Appelez-nous	-
85	316115600		Rack-low Broil				$ 105.47
13A	316111600		Glide-low Broil,inner		Appelez-nous	-
13B	316111501		Glide-low Broil,outer		Appelez-nous	-
2A	316110800		Shield,broiler		Appelez-nous	-
F19	316011409		Pan-burner,small ,gray				$ 153.83
F20	316085205		Grate, Gray, (4)		Appelez-nous	-
F22	316122101		Cap,burner ,small ,gray				$ 34.85
NI	5303280308		Screw,wafer Hd Sq Dr ,10-24t X 2.00 ,handle Mtg				$ 16.96
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
