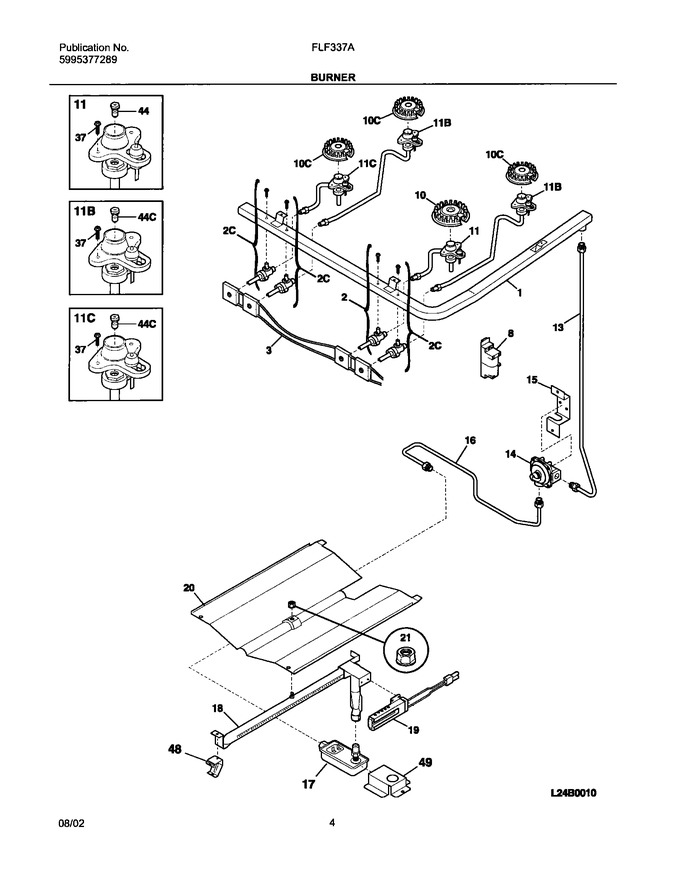

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316091708		Controller-regulator Lp				$ 115.03
15	316091600		Bracket-regulator				$ 73.56
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	316237905		Orifice,top Burner ,10k ,lp		Appelez-nous	-
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
44C	316237906		Orifice,top Burner ,8k ,lp				$ 86.10
F1	316204000		Pipe,manifold		Appelez-nous	-
F10	316212300		Burner,sealed ,12k				$ 105.95
F10C	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F11	316237804		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11B	316237703		Ignitor/orifice Assy.,top Burner ,rear ,8k,w/holder,tube		Appelez-nous	-
F11C	316237803		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F13	316207000		Tube,3/8 `aluminum ,rgltr To Manf ,with Fittings				$ 96.55
F16	316065006		Tube,valve To Regul ,3/8				$ 122.09
F17	3203459		Valve-safety				$ 303.64
F18	316114300		Burner,oven				$ 169.88
F19	5303935066		Ignitor,oven Kit ,w/nut & Instr			Immediately	$ 59.58
F2	5303935199		Valve,top Burner ,10k ,2 Position ,lp		Appelez-nous	-
F2C	316202905		Valve,top Burner ,2 Position ,lp		Appelez-nous	-
F3	316219004		Wiring Harness,w/igntr Switch   (Replaces: 316219000)			Immediately	$ 174.86
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	316253700		Wiring Harness,ignitor Module				$ 139.28
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
