View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Uppercab/drum/heater
04 - Motor/blower/belt
06 - Control Panel
08 - Lower Cabinet/top
10 - Motor/tub

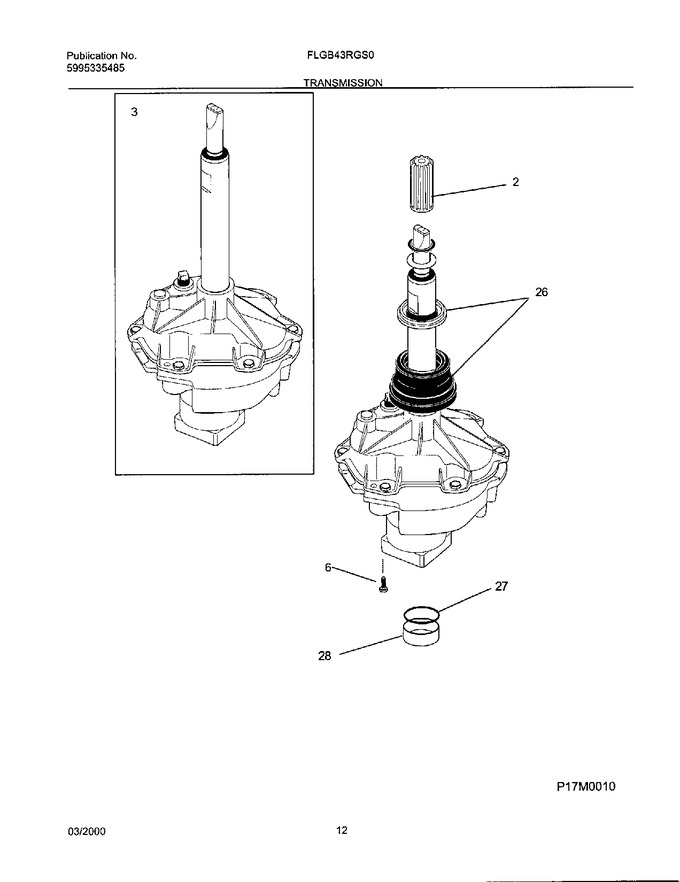

12 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131475100 | Hub-drive |
|
- | |||||
| 3 | 134736400 | Asmy-trans H+-helical Gear (Replaces: 131878401) |
|
$ 875.74 | |||||
| 6 | 131346600 | Screw |
|
- | |||||
| 26 | 5303279394 | Seal-tub |
|
$ 85.72 | |||||
| 27 | 131784300 | Washer-trans-brg Block-koyo |
|
- | |||||
| 28 | 131784400 | Spacer-trans Brg Block-koyo |
|
$ 48.58 |
