View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Control Panel
03 - Door
04 - Door (series 11)
05 - Gas Carrying
06 - Motor & Drive
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

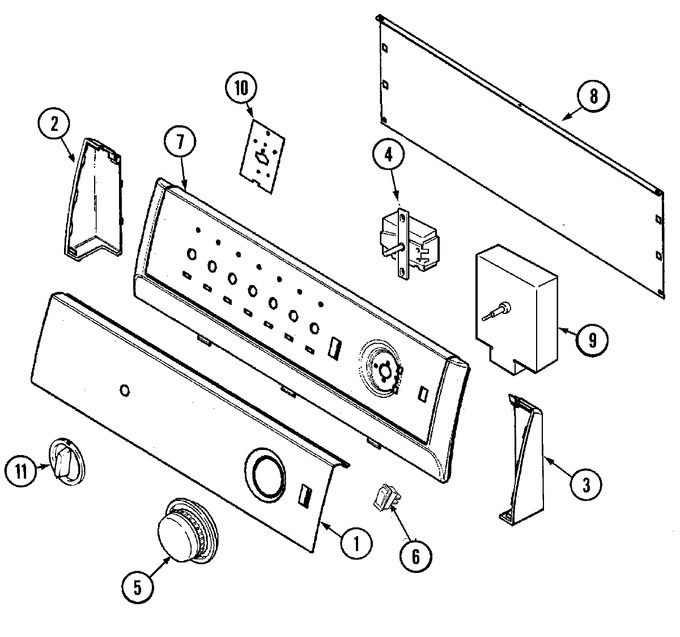

| 1 | 31001516 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 3 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 31001348 | Switch, Temperature | 10 |
|
- | ||||
| 5 | 31001517 | Knob/skirt (wht) | 10 |
|
- | ||||
| 6 | 21001902 | Switch, Rocker (wht W/leads) | 10 |
|
- | ||||
| 7 | 21001553 | Frame | 10 |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 9 | WP31001513 | Timer (120v/60hz) (Replaces: 31001513) | 10 |
|
$ 340.49 | ||||
| 10 | 21001517 | Shield, Control (1 Pos.) | 10 |
|
$ 4.83 | ||||
| 11 | 21001845 | Knob, Switch (wht) | 10 |
|
- | ||||
| 12 | 31001518 | Manual, Use & Care | 10 |
|
- | ||||
| 12 | 31001492 | Harness, Wire | 10 |
|
- |
