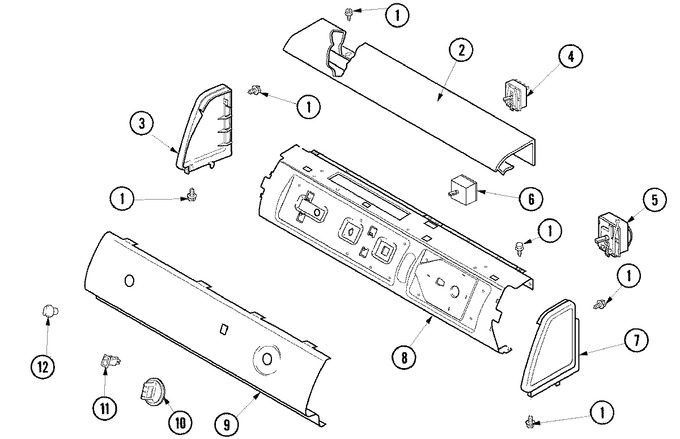

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw, 8b-18x3/8 Slt (Replaces: 501086) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | D505808W | Cover, Top (wht) (Replaces: 503674W) | 10 |
|
$ 91.43 | ||||
| 3 | 40012702W | Endcap (lt-wht) | 10 |
|
- | ||||
| 4 | 40084101 | Switch,fab Sel-3 Position | 10 |
|
- | ||||
| 5 | 40112601 | Timer | 10 |
|
- | ||||
| 5 | 37001020 | Timer (4 Cycle) | 12 |
|
- | ||||
| 6 | 40119401 | Signal,non-adjustable | 10 |
|
- | ||||
| 7 | 40012701W | Endcap (rt-wht) | 10 |
|
- | ||||
| 8 | 40039610 | Panel, Support | 10 |
|
- | ||||
| 9 | 40118901W | Panel,graphic(white) | 10 |
|
- | ||||
| 10 | 40013601W | Assy, Timer Knob (wht) | 10 |
|
- | ||||
| 11 | 38424W | Switch, Rocker (wht) | 10 |
|
$ 8.73 | ||||
| 12 | 40013402W | Knob, Selector (wht) | 10 |
|
- | ||||
| 13 | 37001007 | Harness, Wire (gas Valve) | 11 |
|
$ 98.15 | ||||
| 13 | 37001024 | Harness, Wire | 10 |
|
- |
